- with 2 independent sensor systems
- consisting of a valve housing
- Lift valve
- 2 independent bellows displacement sensors with liquid-filled temperature sensors and an immersion sleeve
- the capillary tube is protected by flexible metal hose
- the TAS is connected to the hot water outlet of the water heater or to the inlet of the safety heat exchanger
- If the response temperature is exceeded, the lift valve is opened by the thermal travel sensor
- Cooling water is supplied from the mains network, thus preventing the maximum permissible operating temperature from being exceeded
- Operating pressure max. 10 bar
- Ambient temperature range 80 °C
- Response temperature 99 °C
- Blow-off capacity at 110 °C= 2000 bar > 2
- 4 cubic metres/hour
- Connections 2x G 3/4 internal thread
- Connection immersion tube G1/2 external thread
- Immersion tube length 146 mm
- Capillary tube length 2000 .300 or 4,000 mm
- Housing made of pressed brass

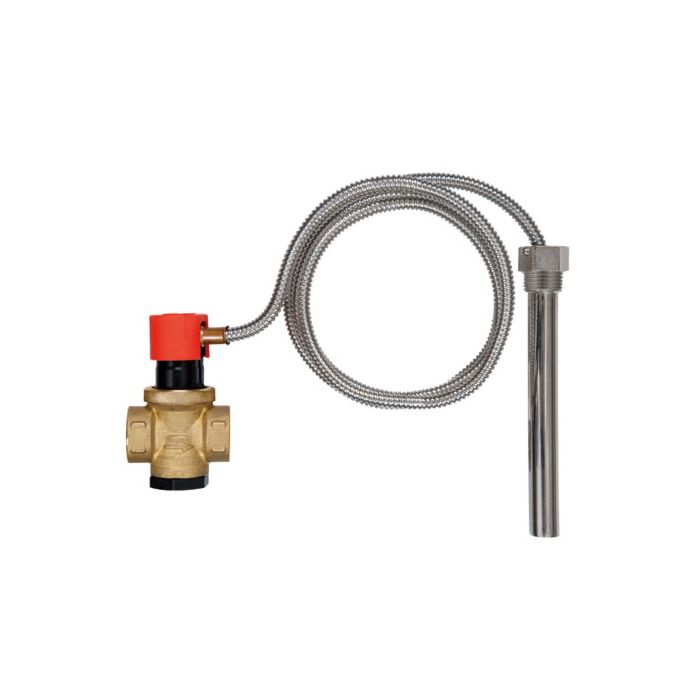

Afriso Drainage protection 42415 thermal, capillary tube length 1300 mm
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 50
Part Number: 42415
Details
Afriso drain protection 42415
Notice
Please note that gas and electric appliances require increased mains voltage for proper operation. These appliances are not equipped with a two-pin mains plug. The installation of non-pluggable appliances must be carried out by the respective network operator or a certified specialist company, which can also assist you in obtaining any necessary approval from the relevant network operator for the installation of the appliance.
Shipping information: We ship electrical products exclusively to Germany, France, Poland, Belgium, Austria, Slovenia, Spain and the Netherlands.
Downloads (2)
Product Safety
Manufacturer
AFRISO-EURO-INDEX GmbH
E-Mail
info@afriso.de
Address
Lindenstraße 20
74363 Güglingen
Germany
Reviews
Write Your Own Review
** Average Wholesale Price
