- for single-line systems with return flow in oil-fired systems for continuous venting
- suitable for the media heating oil EL (DIN 51603- 2000 ) and diesel fuel (EN 590) as well as bio heating oil and biodiesel (EN 14214) with max. 20 % FAME
- also for use in flood-prone areas
- FloCo-Top-2 can be installed in any system
- For burners with an oil consumption < 20 l/h, multiple filtering is recommended
- For larger systems, the heating oil vent must be set to single filtering
- Automatic heating oil vent in safety design with integrated Filter
- Shut-off valve and vacuum Manometer
- Housing with changeover valve for multiple filtration and backflow preventer with integrated pressure relief towards the tank
- compact vent hood made of transparent plastic
- with 2-float safety system to prevent oil foam from escaping through the vent hole
- the connection for the ventilation hose is made unobtrusively from the side
- the return oil is passed through the float chamber for venting and can be mixed directly into the flow or subjected to a new filtering process by switching a valve
- In multiple filtration, the return oil ensures an increased flow velocity
- The filter cup is therefore permanently filled with vented oil
- During service, the vacuum Manometer shows the pump vacuum
- With the shut-off valve closed, the suction capacity of the burner pump can be checked
- an increased negative pressure provides information about filter contamination
- When changing the burner hose regularly, a bypass valve must also be opened
- Pressure-waterproof up to 10 m water column
- Burner connections G 3/8 with 60 °C cone for burner hoses
- Tank side G 3/8 IG
- Nozzle capacity max. 100 l
- Return flow max. 120 l
- Separation capacity air/gas > 4 l/h
- Installation of float chamber vertically upwards
- Temperature range medium/ambient max. 60 °C
- Working pressure max. 1930
- 7 bar (corresponds to a static oil column of approx. 8 m)
- Test pressure 6 bar
- Vacuum gauge display range - 1930
- 7/+ 1930
- 9bars
- Housing made of die-cast zinc
- Ventilation hood made of transparent plastic
- Filter cup made of transparent plastic
- TÜV-tested (S 133 2013 E2)
- Scope of delivery: Heating oil vent
- Universal screw connections for pipes Ø 6/8/10 mm
- Mount with Montagematerial
- Dirt cover for connecting the vent hose and drain hose

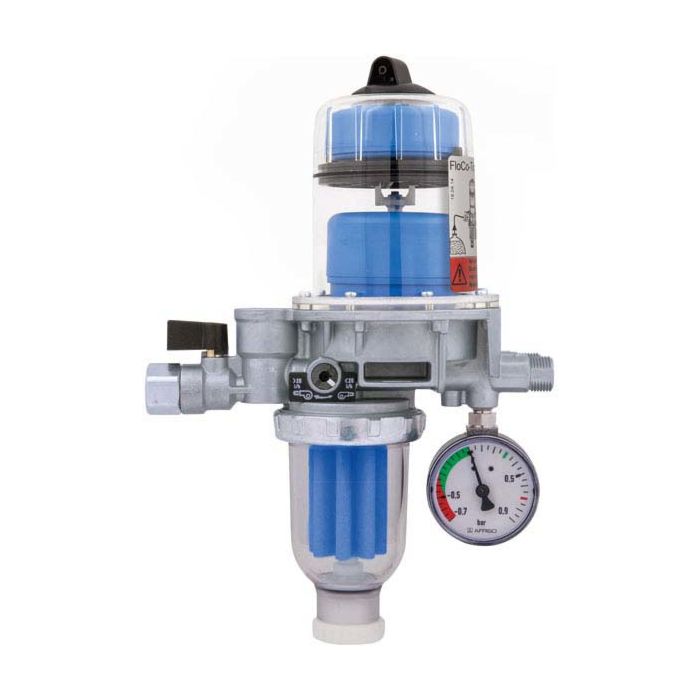

Afriso FloCo-Top-2KM heating oil deaerator 70110 SI, Siku sieve short, 50 µm
In Stock
delivery time: 1-3 working days
Shipping Cost Points: 10
Part Number: 70110
Details
Afriso heating oil vent 70110
