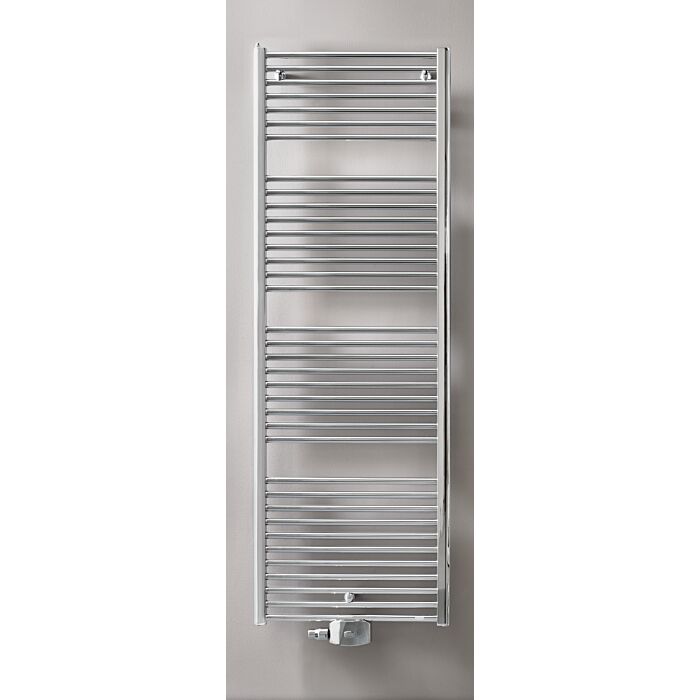

Bemm Mido towel radiator BMB180060CR5M
- for central heating (additional equipment with electric heating element) and for heating towels and textiles
- Horizontal round tubes 23 mm connected to vertical, smooth, semi-oval tubes 30 x 40 mm
- with 2-3 openings for towels
- with M-connection DN 15 x 50 mm in the center at the bottom and 2 connections DN 15 from the bottom
- right and left outer
- and 1 DN 15 vent connection from the top right
- Surface powder-coated according to DIN 55900 and baked on at approx. 180 °C
- Standard accessories: DN 15 vent plug in nickel-plated finish with special seal
- 3 depth-adjustable
- Fasteners that can be fixed from the front meet AK 2-3 according to VDI 6036, depending on the size.
- With 3 hexagonal wood screws and dowels. Heat output ΔS according to DIN EN 442-2
- Heating medium water: max. permissible operating temperature 100 °C
- Maximum permissible operating pressure: 10 bar
