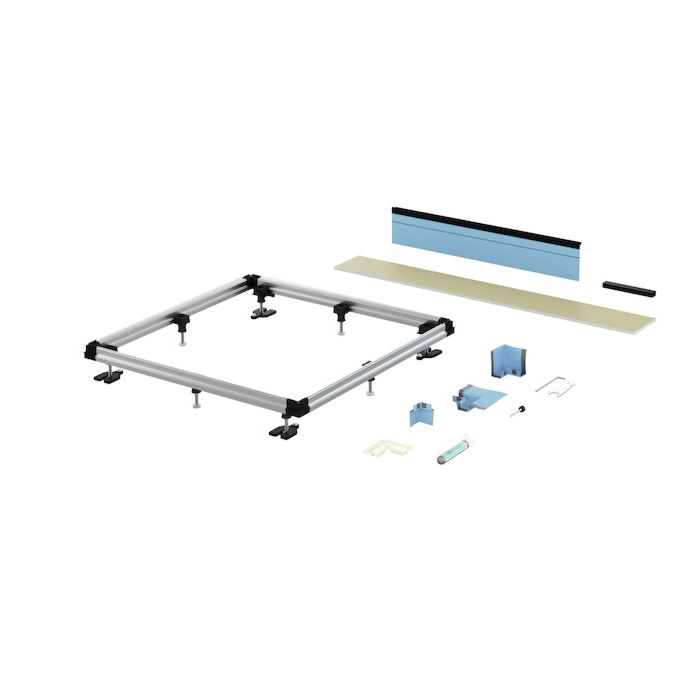

BETTE installation system Universal B506057

  • Article number: B506057
  • Dimensions: 1200 x 900 mm
  • for floor-level installation
  • Mounting system for quick installation of shower surfaces and shower trays 2.5 cm, 3.5 cm and 6.5 cm
  • consisting of high quality aluminum support frame
  • optimal weight transfer with height-adjustable feet
  • Adjustment range upper edge of tub to lower edge of foot 75-215 mm
  • formwork aids
  • seal
  • PU sealing tape and tiling aids
  • suitable for floor-level installation or with tile base
  • meets in combination with Bette surfaces the noise protection requirements of DIN 4109 and with only 20 db- A the increased requirements according to VDI SST III

Technical Data

Technical Data
material Steel / enamel
length 1200 mm
product class Shower tray feet/frame
model B50
