- System: mounted on wall frame (with quick-mounting bracket)
- Piping system made of diecasted brass
- modular with shut-off kit and water meter built into the device base (no water interruption when changing cartridges - no bypass required)
- The modules are docked with a patented quick assembly system
- Water connection either left or right
- Connection fittings with AG as well as device cover (as dust protection) and water trough are included in delivery
- Control: Installed ready for connection in a standard control cabinet (degree of protection IP 54)
- per module number, power electronics with separate protection are used
- wherein a central processor controls and monitors the entire system
- completely wired
- Connection with earthing contact plug 230 V / 50 Hz
- Output for ZLT (warning for cartridge change and fault message)
- Indicator lights on the cabinet door
- Nominal pressure PN 10
- Water / ambient temperature max. 30/40 ° C
- Mains connection 230/50 V / Hz
- electrical connection cable 60 W
- Energy consumption 55 kWh / cbm
- Protection class IP 54

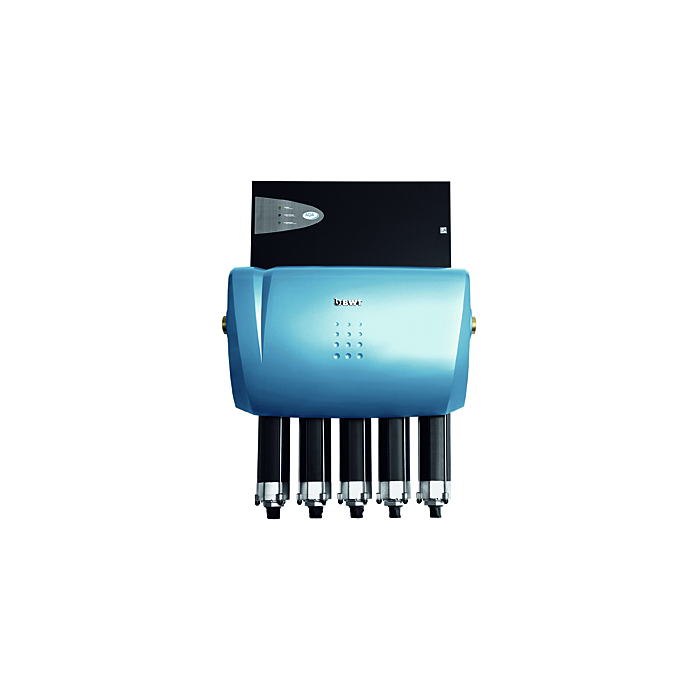

BWT AQA total Energy drinking water system 80012 type 11200, 2 "AG
€20,120.90
instead of
€24,112.14
**
-17%
You're saving
€3,991.24
Incl. 19% VAT ,
plus shipping costs
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 1500
Part Number: 80012
Details
BWT AQA total energy drinking water system 80012
Notice
Please note that gas and electric appliances require increased mains voltage for proper operation. These appliances are not equipped with a two-pin mains plug. The installation of non-pluggable appliances must be carried out by the respective network operator or a certified specialist company, which can also assist you in obtaining any necessary approval from the relevant network operator for the installation of the appliance.
