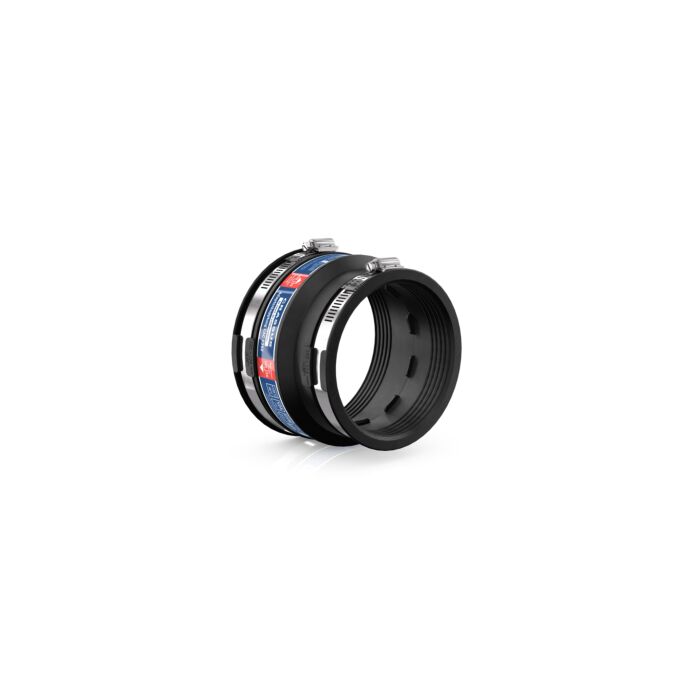

Crassus adapter coupling CRA12057
- Flexible connection for all pipe types and different pipe dimensions
- Suitable for all wastewater pipes
- permanent and maintenance-free connection
- For horizontal and vertical installation
- Suitable for ribbed and insulated pipes
- for exhaust gas temperatures up to max. 120 °C
- UV-resistant
- Suitable for use in soil and under plaster
- Wastewater disposal and supply
- Connections in the area of condensate drainage
- Suitable for supply/exhaust air connections
- CE marking according to DIN EN 681-1
- DIN EN 16397
- Pressure density 0.6 bar/-0.3 bar vacuum
- High pressure flushing resistance 120 bar
- Temperature resistance -40 °C/+120 °C (temporarily max. 160 °C)
- Sealing material EPDM according to DIN EN 681-1 (alternatively NBR or FKM)
- Clamp band stainless steel V2A (1.4301, AISI 304)
- alternatively V4A (1.4401, AISI 316)
