Ewuaqua

Ewuaqua deep well pump 23085 3-60 58 m, 3.6 cbm / h

Be the first to review this product
€372.08
instead of €712.86 **
-48% You're saving €340.78
Incl. 19% VAT , plus shipping costs
Available for order delivery time: 10-28 working days
Shipping Cost Points: 500
Part Number: 23085
Questions about the article?
+49 2405 4951010
Add to Wishlist

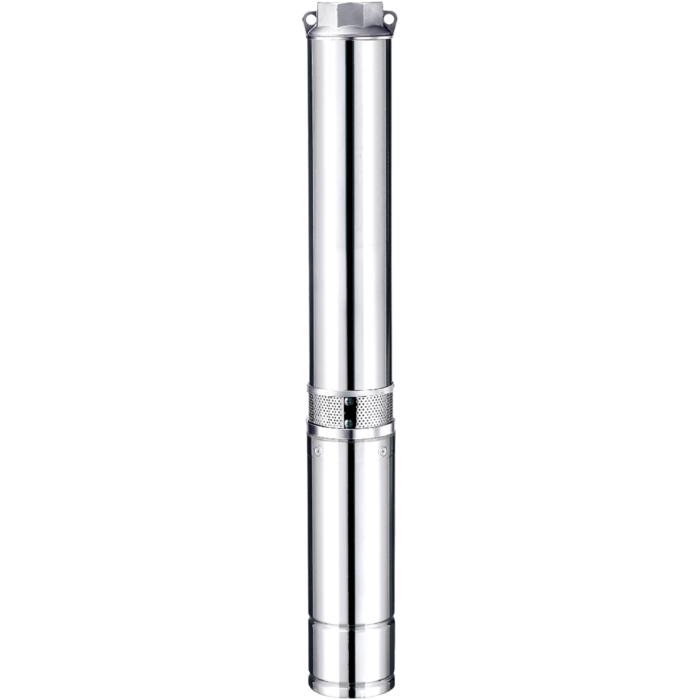

main product photo

Illustration may differ from the actual product. Delivery without accessories and decoration.

Details Chevron Down

Ewuaqua deep well pump 23085
  • multi-stage
  • For wells and boreholes with a diameter of 4 "(min. 110mm) and larger
  • has a multi-stage 4 "hydraulic system
  • which is made entirely of stainless steel except for the impellers and idlers
  • has floating impellers and a special built-in check valve
  • Hydraulics with suction strainer
  • a cable protector
  • Fastening lugs and connecting 2000 2000 / 4 "with IG according to ISO 228 as well as a motor adapter according to NEMA standard
  • Impellers made of POM and idlers made of polycarbonate (thermoplastic plastic)
  • has a single-phase asynchronous submersible motor made of stainless steel
  • 2-wire motor with integrated capacitor is designed for direct connection to the 2000 network (no start-up device required)
  • has a mechanical seal made of carbon and Bathroom ceramics for sealing the motor shaft
  • an oil filling with cooking oil (No. 10 food oil)
  • Connection cable as round cable 30m (3-60) or 40 m (6-70) with open ends as well as a special membrane made of NBR for pressure equalization in the motor
  • The engine should not make more than a maximum of 20 evenly spaced starts and stops per hour
  • it has a voltage of 220-240 V at 50 Hz in the network
  • is suitable for continuous operation (S1) and has thermal overload protection
  • promotes clean and clear water with a sand content (grain size no larger than 2mm) of up to 120 gr / m³ from boreholes and wells
  • when using the pump must be guaranteed
  • that there is a minimum flow velocity of 8 cm / s for cooling the motor

Downloads (1) Chevron Down

pdf
ewuaqua-23085-produktdatenblatt.pdf
(Size: 172.7 KB)
