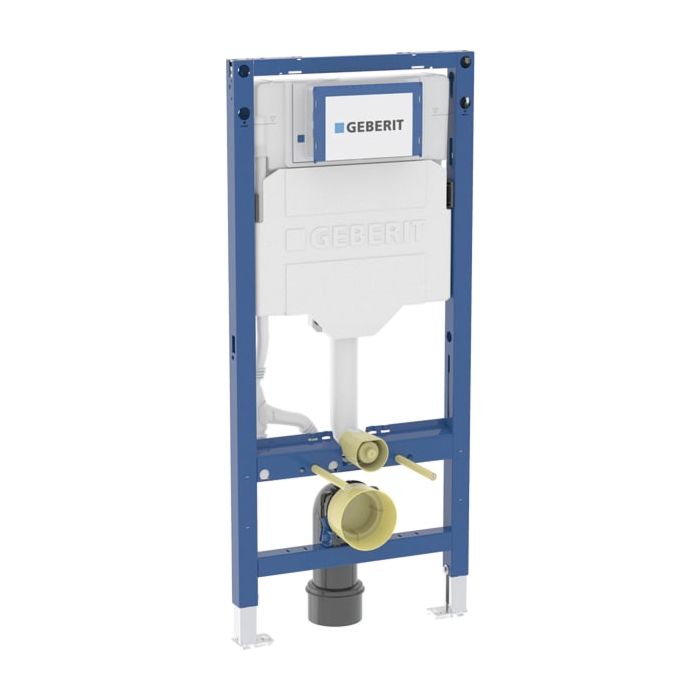

Geberit Duofix pre-wall element for wall-hung toilet, height adjustable
The classic Geberit Duofix WC pre-wall system for the quick and secure installation of wall-hung toilets in drywall construction. Thanks to the proven Sigma concealed cistern (UP320), the installation element offers maximum reliability, excellent sound insulation, and is already prepared for the retrofitting of modern shower toilets.
- Article number: 111300006
- Width: 50 cm
- for Geberit Duofix system walls
- for installation in metal and wooden stud walls
- for installation in partial or full-height partition walls
- for installation in floor-to-ceiling partition walls
- Suitable for floor constructions from 0–25 cm
- with Geberit Sigma concealed cistern 12 cm, fully condensation-insulated
- For front actuation; suitable for single-flush, dual-flush and flush-stop flushing.
- Factory setting flush volume: 6 and 3 liters
- Large flush volume setting range: 4 / 4.5 / 6 / 7.5 l
- Small flush volume setting range: 2–4 l
- Material: Steel
- Flow pressure: 10–1000 kPa
- Water temperature: Max. 25 °C
- Mounting options for electrical connection and Power & Connect Box are available.
Why this toilet wall-hung element?
Stable & Durable : Statically self-supporting steel frame with powder-coated corrosion protection.
Standard compliant : Frames for wall-hung toilets with connection dimensions according to EN 33 and a projection of up to 70 cm.
Easy mounting : With extension plate for lateral mounting above the element on metal/wood profiles or Geberit Duofix system studs.
Flexible : Alternative mounting position for wall anchors available.
Easy to install : Rotatable base plates, suitable for installation in U-profiles UW 50 and UW 75.
Tool-free installation in rail : Base plates can be mounted into the Geberit Duofix system rail without tools (without additional components).
Secure footing : Galvanized, corrosion-protected footrests with practical slip resistance.
Variable connection : Connection elbow can be mounted without tools in different depth positions (adjustment range 45 mm).
Ready for immediate use : Rinsing is possible immediately with the factory settings.
Maintenance-friendly : All assembly and maintenance work on the concealed cistern is carried out completely without tools.
Water connection : Flexible placement possible at the back or at the top center.
Suitable for Geberit shower toilets : Equipped with a conduit for the water supply of Geberit AquaClean shower toilets and for connection cables.
Scope of delivery :
- Wall-hung element with Sigma cistern
- Water connection R 1/2", MasterFix and MeplaFix compatible, with integrated angle valve and handwheel
- Construction protection for service opening
- Connection set for toilet, ø 90 mm
- 90° connecting bend made of PE-HD, ø 90 mm
- PE-HD transition sleeve, ø 90 / 110 mm
- Fastening and protective material
