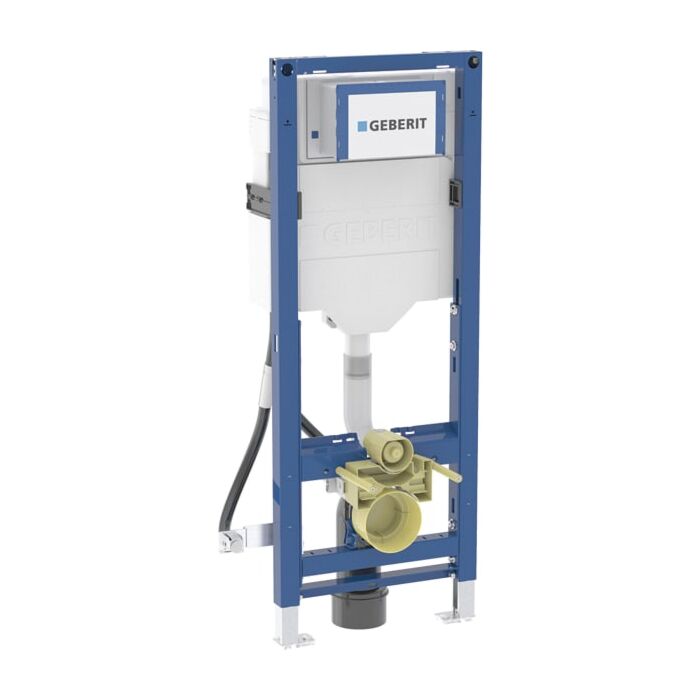

Geberit Duofix element for wall-hung toilet, barrier-free
Ideal for tight niches, small guest bathrooms, or narrow wall-hung installations . Features the modern Sigma UP320 cistern (series 2025). It is suitable for accessible toilets but does not include mounting plates for side grab bars.
- Article number: 111350006
- Width: 42.5 cm
- Suitable for drywall construction (pre-wall and system walls)
- for barrier-free installations in metal or wooden stud walls
- Flexible application for floor constructions from 0–25 cm
- Suitable for toilets with a projection of up to 70 cm.
- with conduit for water supply for Geberit AquaClean shower toilets or for connection cables
- Prepared for mounting a 12V power supply behind the toilet bowl (Geberit power supply must be ordered separately)
Cistern : Geberit Sigma 12 cm, easy to operate from the front, for single or dual flushing.
Quality : Corrosion-protected, powder-coated steel frame for static self-supporting loads.
Flexibility : The mounting height of the toilet can be adjusted between 41–46 cm during the rough construction phase.
Smart-Home Ready : Includes Power & Connect Box and integrated conduit for quick connection of shower toilets.
Easy installation : Tool-free adjustment of the connection bend and uncomplicated maintenance of the concealed cistern.
Scope of delivery :
- WC pre-wall element with Sigma concealed cistern
- Water connection R 1/2", MasterFix and MeplaFix compatible, with
- integrated angle valve and handwheel
- Construction protection for service opening
- 4 wall anchors
- Connection set for toilet, ø 90 mm
- 90° connecting bend made of PE-HD, ø 90 mm
- PE-HD transition sleeve, ø 90 / 110 mm
- Power & Connect Box, with intermediate shelf with
- Terminal block
- Conduit length 0.32 m, for connection of Geberit AquaClean
- Construction protection for Power & Connect Box
- Fastening and protective material
