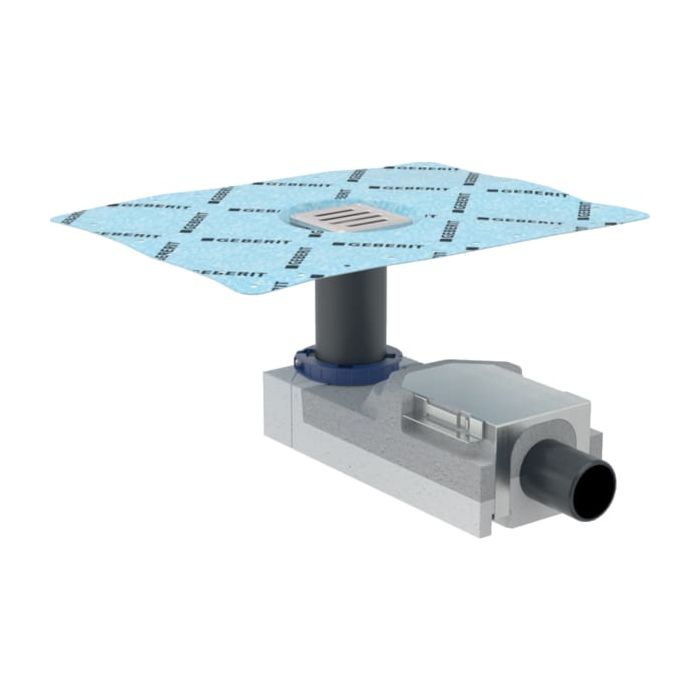

Geberit shower floor drain 154050001


  • For installation inside buildings
  • For drainage of floor-level showers
  • For composite seals
  • For screed heights ≥ 90 mm at the inlet
  • Quality controlled according to EN 1253-3
  • Tile construction floor 2-40 mm
  • Pre-assembled sealing fleece
  • Woven fleece around 10 cm, for the connection of sealing systems
  • Stainless steel grate
  • Rust in height, tilt and offset aligned
  • Body made of EPS for sound decoupling and odor trap
  • Bauschutzdeckel with trigger edge
  • Bed upper
  • comb insert
  • Grate carrier with compensation ring
  • rust
  • Odor trap made of PE-HD
  • mounting material

Technical Data

Technical Data
product class floor drain
series Setaplano
drainage capacity 0.8 l / s
With siphon Yes
External pipe diameter 50 mm
With grid Yes
Material grid stainless steel
total height 90 mm
