Details

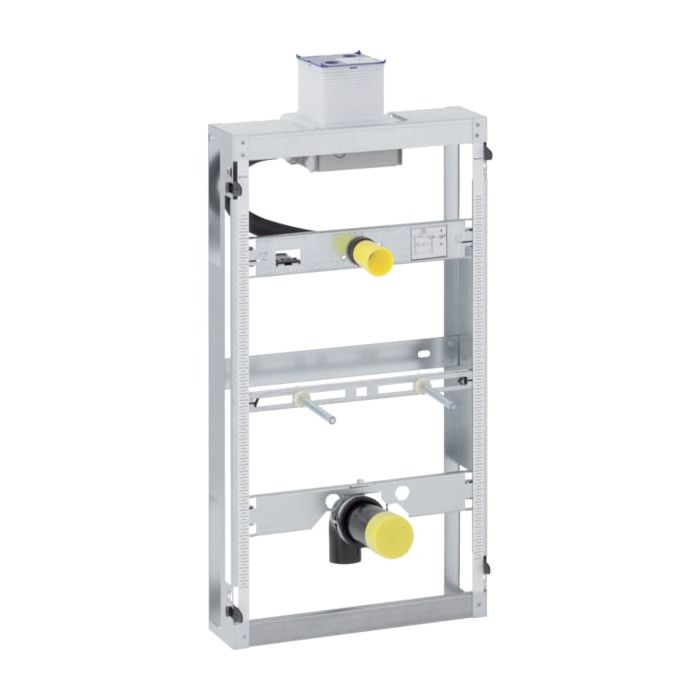

Geberit GIS urinal element 461622001
  • For installation in the GIS support system for the front wall, partition wall and freestanding wall
  • For holding the HyTouch urinal hand releases pneumatically from year of construction 2009
  • For operation from the front properties
  • System drywall element
  • Support frame with 4 quick fasteners
  • height adjustable
  • galvanized
  • Attachment for urinal with threaded rod M8
  • height and distance adjustable
  • Trussing with center marking, tool-free adjustable - Guide for flushing hose - Attachment for inlet D32mm height adjustable - Attachment for Universal arch soundproofed and height adjustable - Universal -pipe kit for Geberit urinal control - Shut-off valve pre-assembled with throttle
  • Right water connection - water connection mountable without tools
  • Inspection opening 10.5 x 10.5 cm
  • Building protection for service opening can be cut to length without tools

Technical Data

Technical Data
Material Stahl
width 420 mm
depth 210 mm
height 950 mm
product class urinal module
model universal
series GIS
UBA positive list Yes
surface protection untreated
application drywall
depth adjustable Yes
Self-supporting construction No
adjustable height Yes
