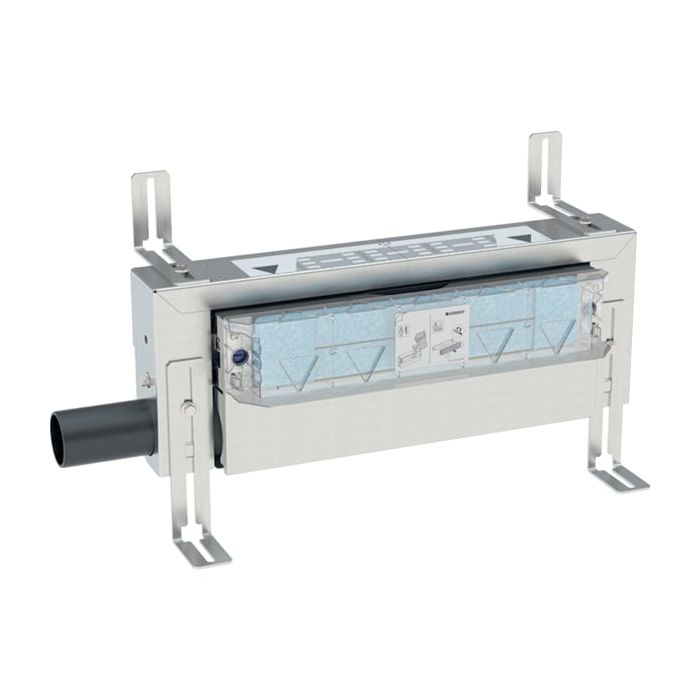

Geberit Kombifix element for shower 457536001

  • Item number: 457536001
  • Dimensions: 530 x 168 x 80 mm
  • with wall drain
  • for low installation heights
  • for wet construction
Use:
  • For drainage of floor-level showers
  • For composite seals
  • For floor structures 65–90 mm
  • For collecting the waste water from a single shower head
  • Prefab kit must be ordered additionally!
Properties:
match2; ">
  • Height adjustable element
  • Pre-assembled sealing fleece, circumferential 10 cm, for connecting sealing systems
  • Deviating from the requirements of EN 1253, the siphon height is only 30 mm
  • Minimum screed height at the inlet: 65 mm
  • Plaster thickness: 5–40 mm
  • Tile structure wall and floor: 4–26 mm
  • Sealing level adjustable for tension-free sealing connection
  • Waste water connection left or right
  • Inlet height of the odor trap adjustable
  • 1930 performance: 1930 , 4
  • Odor trap height: 30 mm
Scope of delivery:
  • Connection piece made of PE-HD, diameter: 40 mm
  • Building protection with integrated inlet plate
  • Pretext element
  • Attachment
Pre- built set 154338001, 154339001, 154335111, 154336FW1 or 154337FW1 must be ordered separately!
