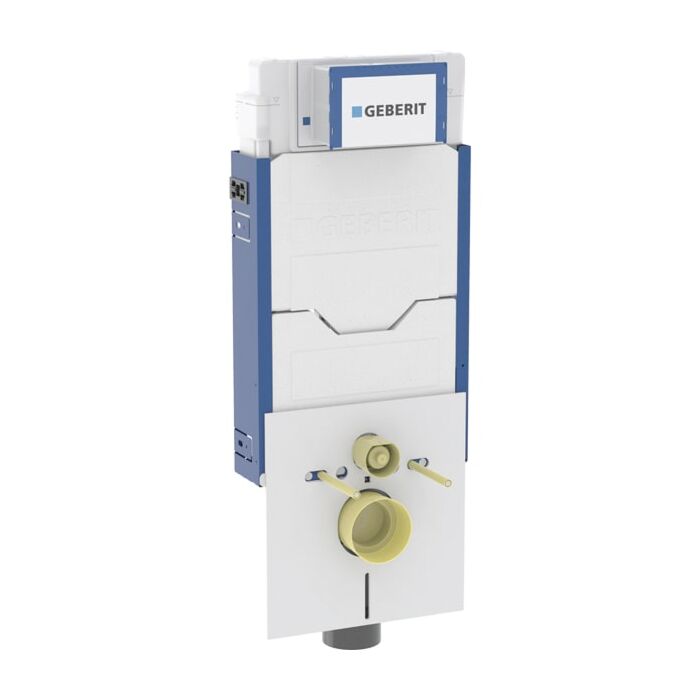

Geberit wall WC element Kombifix 110300005
- Article number: 110300005
- Dimensions (W x H x D): 420 x 760 x 120 mm
- Height: 108 cm
- with Sigma UP cistern
application area
- For wet construction element with cistern UP320 for Sigma, Samba , Twist, Tango
- For installation in partial or room-high pre-wall installations
- Wall-mounted toilets with connection dimensions according to DIN EN 33:2011-11
- For 2000 -quantity, 2-quantity or flush-stop flushing
Characteristics
- Mounting frame powder-coated, with 4 mounting brackets
- connecting bend can be mounted without tools
- Fastening connection bend can be mounted from the front without tools
- UP320 concealed cistern with front actuation, condensate-proof
- flush volume adjustable
- Immediate rinsing possible with factory settings
- Installation and maintenance work on the concealed cistern without tools
- Universal water connection R 2000 /2 inch rear or top with integrated angle valve and handwheel (MeplaFix capable)
- Construction protection for service opening protects against moisture and dirt
- Construction protection for service opening can be cut to length
- Equipped with empty pipe for water supply for connecting Geberit AquaClean shower toilets
- with soundproofing set
- with filling segment
- with threaded rods M12 for ceramic fastening
- with connection set, diameter: 90 mm
