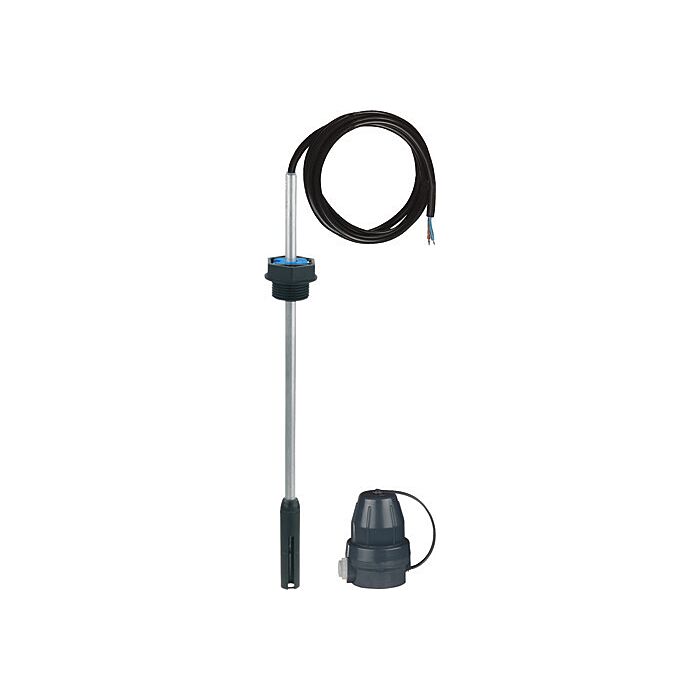

GOK Gwd limit switch 1530500
- as a safety device against overfilling for above-ground (indoor) pressureless tanks
- Construction product for stationary installations for the storage/filling and handling of water-polluting substances (EN 13616: Sensor as part of a type B overfill prevention device
- type B1 (current interface)
- EN 13616-2: Overfill prevention sensor as part of an overfill prevention device without closing device)
- for non-flammable liquids and flammable liquids of category 3 with a flash point above 55 °C (such as diesel fuel
- FAME
- heating oil
- heating oil (bio and vegetable oil)
- Application: above-ground battery tanks according to DIN 6620/site-manufactured steel tanks for above-ground storage according to DIN 6625- 2000
- DIN 6625-2
- ÖNORM C 2117/Tanks according to NBN I 03-002/stationary pressureless tanks made of thermoplastics according to EN 13341 and EN 12573 part 2000 to 3/above-ground GRP tanks according to EN 13121 part 2000 to 4 and other above-ground tanks with a building inspection certificate of usability
- Construction product for use in flood and risk areas
- CE marking according to EU Construction Products Regulation: Declaration of performance according to EN 13616
- CE marking according to EMC and RoHS
- Belgium: AIB-VINCOTTE with prototype number 99/H031/03060502
- Connection Tank AG G 2000
- probe length 305 mm
- probe tube diameter 10 mm
- glass-encapsulated PTC sensor
- probe tube made of aluminum EN AW-6060
- screw-in body made of ABS/PA
- sensor cover made of PA
