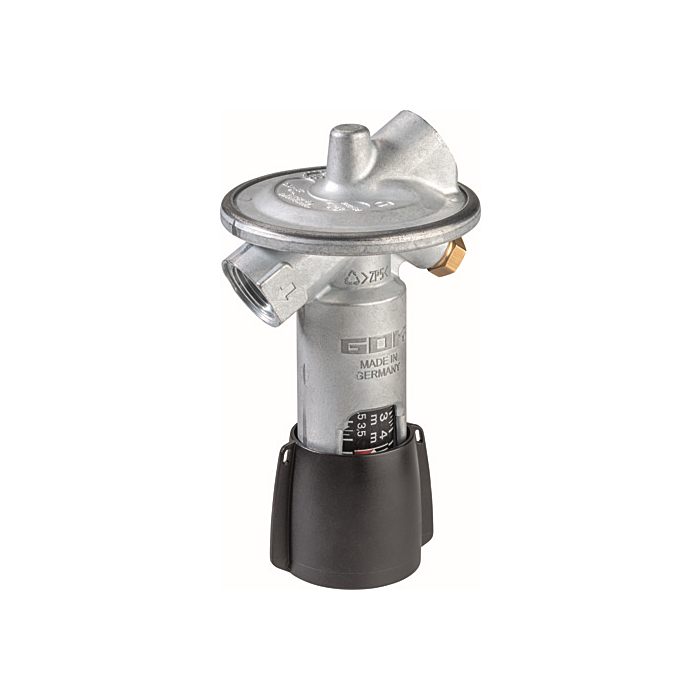

GOK HS-V.3/WHG Lifter safety device 1551200
- with blind screw
- Safety device against lifting according to DWA-A 779
- DWA-A 791
- TROil
- DIN 4755 and EN 12514
- Operating media: FAME
- Bio-heating oil maximum 20% (v/v) FAME
- Heating oil EL
- HVO and vegetable oil
- Adjustable safety height with ergonomic scale
- for fuels with different densities
- Integrated safety device against overpressure as double-sided pressure relief between siphon safety device and burner
- for all levels of coverage
- manual venting during commissioning
- Installation in manholes for ambient temperatures from -25 °C to +40 °C
- Plastic seal and wire for subsequent fixing of the safety height
- For the required functional test every 5 years, the diaphragm-controlled lifting safety device is provided with an internal thread G 1/8.
- which comes standard with a blanking screw
- can be retrofitted with a test valve or control and test pressure gauge
- When testing with a pressure gauge, the suction line does not need to be cut at its lowest point.
- to simulate a pipe break
- Therefore, no intervention in the system is necessary and there is no danger.
- that oil can leak
- Conformity: Construction product suitable for use in flood and risk areas
- ÜHP according to MVV-TB C 2.15.22: EN 12514
- Technical specifications: Maximum permissible pressure: PS 10 bar
- Flow rate: up to 220 l/
- Temperature range: Operating medium: 0 °C to +40 °C
- Ambient conditions: -25 °C to +40 °C
- Coverage amount: HA = 0
- 5 to 4
- 0 m
- Connection for pressure gauge or test valve: IG G 1/8
- Connection of a cylindrical screw-in fitting type GERB
- according to EN ISO 1179-4 Form B with sealing via supplied O-rings FKM
- On the output side, a universal connection set type UA is connected as a clamp connector of type G according to EN 12514.
