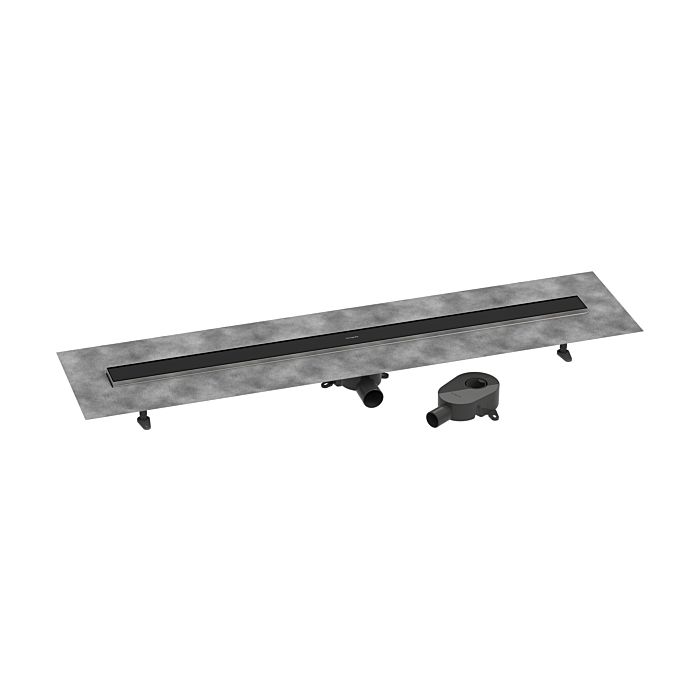

hansgrohe RainDrain Go1200 Complete set DR 1200 56276670
- rear tiling stand/flat installation MSW

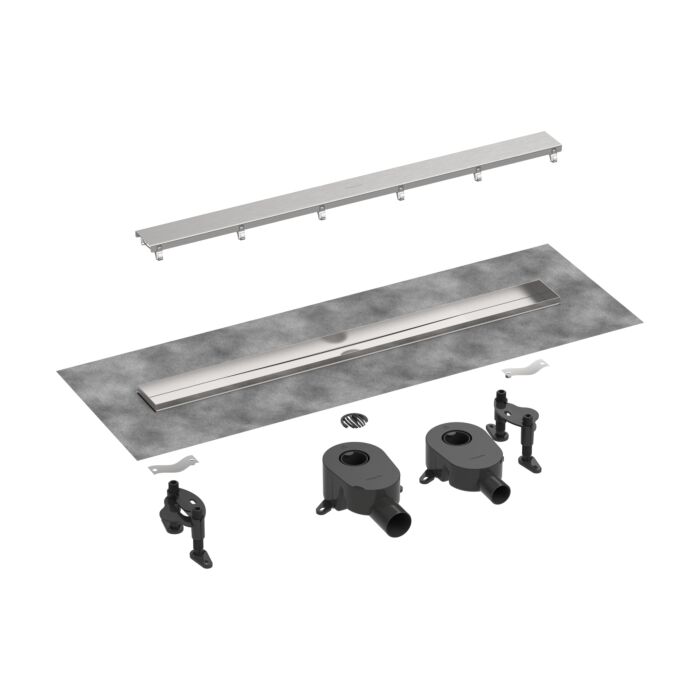

- consists of: Finished set shower channel, siphons, installation set, factory pre-assembled sealing fleece, cover lifter, hair trap
- Material quality cover: stainless steel V2A ( 2000 .4301)
- Material installation set: stainless steel V2A ( 2000 .4301)
- pre-assembled sealing membrane
- can be tiled on the back
- Sealing water height: 30 mm, 50 mm
- Nominal diameter connection: DN40, DN50
- Direction of outlet: horizontal
- easy to clean surface
- Height adjustable by 15 mm
- Drainage capacity flat Plumbing : up to 31 l/min
- Drainage capacity standard installation: up to 39 l/min
- Area of application: New construction, renovation
- Tile thickness: up to 11 mm
- Rotatable and adjustable siphon housing
- easy to clean siphon
- Cover lifter allows easy removal of the finished set
- Material siphon: ABS
- Installation type: free in the room
- Depth of the tile recess: 12 mm
- Choice of two different siphons for standard or flat Plumbing
- suitable for primary and secondary drainage
