Heimeier

Heimeier thermostatic valve body 2245-02.000 Rp 2000 / 2xR 2000 / 2, axial, gunmetal nickel-plated, low resistance

Be the first to review this product
€24.41
instead of €31.34 **
-22% You're saving €6.94
Incl. 19% VAT , plus shipping costs
In Stock delivery time: 1-3 working days
Shipping Cost Points: 10
Questions about the article?
+49 2405 4951010
Add to Wishlist

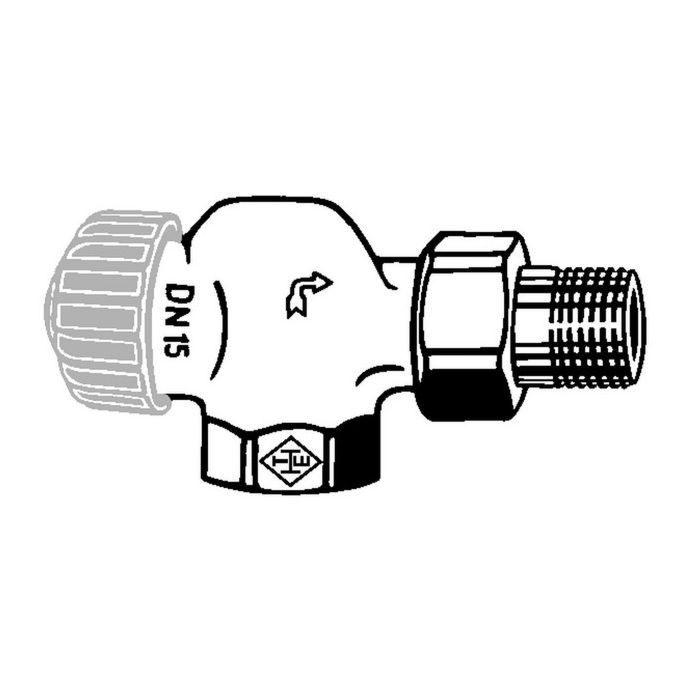

main product photo

Illustration may differ from the actual product. Delivery without accessories and decoration.

Details Chevron Down

Heimeier thermostatic valve body 2245-02.000
  • the thermostatic valve bodies without pre-setting with particularly low resistance
  • are z. B. in two-pipe low-temperature heating systems with a small temperature spread
  • Gravity systems and conventional one-pipe heating systems are used
  • Application area heating and cooling systems
  • regulate
  • Shut off
  • DN 10-32
  • PN 10
  • Max. Operating temperature 120 ° C
  • with protection cap or actuator 100 ° C
  • min. Operating temperature -10 ° C
  • Corrosion-resistant gunmetal valve body
  • O-rings EPDM
  • EPDM valve disc
  • Stainless steel compression spring
  • Brass thermostatic insert
  • The complete thermostatic insert can be replaced with the assembly device without draining the system (DN 10
  • DN 15)
  • Spindle Stainless steel spindle with double O-ring seal
  • the outer O-ring can be replaced under pressure
  • Surface treatment of valve housing and screw connection nickel-plated
  • Marking THE
  • country code
  • Flow direction arrow
  • DN and KEYMARK marking
  • Protection cap blue
  • Blue stuffing box (DN 10
  • DN 15)
  • Pipe connection the housing with internal thread is designed for connection to a threaded pipe
  • or in connection with compression fittings on copper, precision steel or composite pipe (only DN 15)
  • the version with external thread also enables the connection of plastic pipes with the corresponding compression fittings
  • Connection for thermostatic heads and Stellantriebe M30 x 2000
  • 5
