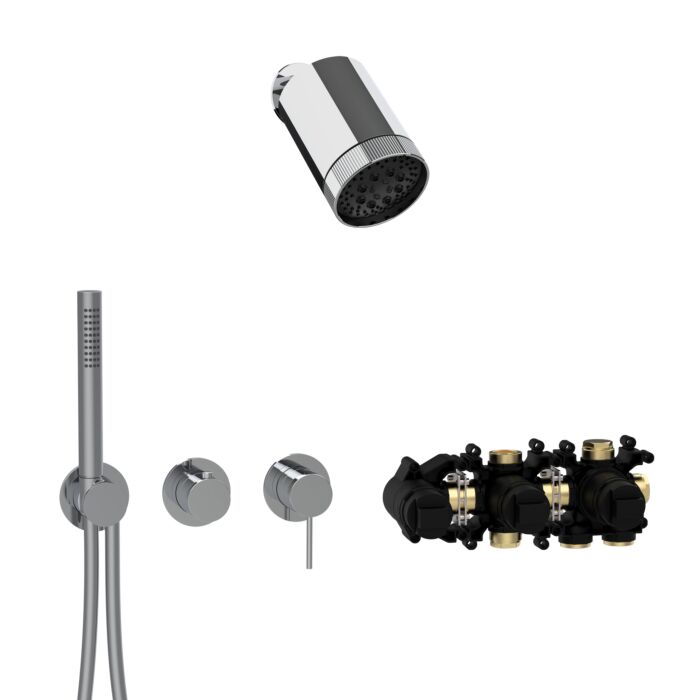

herzbach MODUL7 lever mixer set H-SP3 with SPOT Multi
and hand shower for use in the shower area
SET SCOPE
70.720002. 2000 .09 MODUL7 lever mixer built-in unit
70.702002. 2000 .01 MODUL7 lever mixer color set for 2 Verbraucher
11.044286. 2000 .01 LIVING SPA wall-mounted rain shower SPOT 102x142mm Multi
MODUL7 lever mixer built-in unit
-for 2 Verbraucher
MODUL7 lever mixer
-smooth-running LOGIC-SoftEmotion ceramic cartridge
-continuous volume and temperature regulation
-Brass operating handle
-Brass module cover Ø 70 mm
MODUL7 shut-off and diverter valve
-ceramic 2-way diverter
-smooth and stepless volume control with a small operating radius
-comfortable separate consumer selection through haptic locking point
-Brass operating handle
-Brass module cover Ø 70 mm
MODUL7 shower holder set
-Shower connection bend with concealed hose connection
-MODUL7 shower hose 1500 mm with rotating cone
- 2000 -jet brass hand shower
-Brass module cover Ø 70 mm
LIVING SPA Wall-Mounted Rain Shower SPOT Multifunction 3
-Jet types: Rain / Rain soft / Massage
-Change of jet type using the ring switch on the shower head
-Dimensions 102 mm x 142 mm
-incl. round Ø 70 mm and square 70 mm x 70 mm brass wall panel
-centered angle of inclination of the shower head 45°
-Shower head can be tilted up / down by 15°
-Clean effect
Module center distance 105 mm
min. operating pressure: 1930 .5 bar
max. operating pressure: 5 bar
integrated backflow preventers and dirt strainers
intrinsically safe against backflow
Chrome surface
Manufacturers herzbach / Product group M7 SETS CHROME
Art no. 70.702722. 2000 .01
