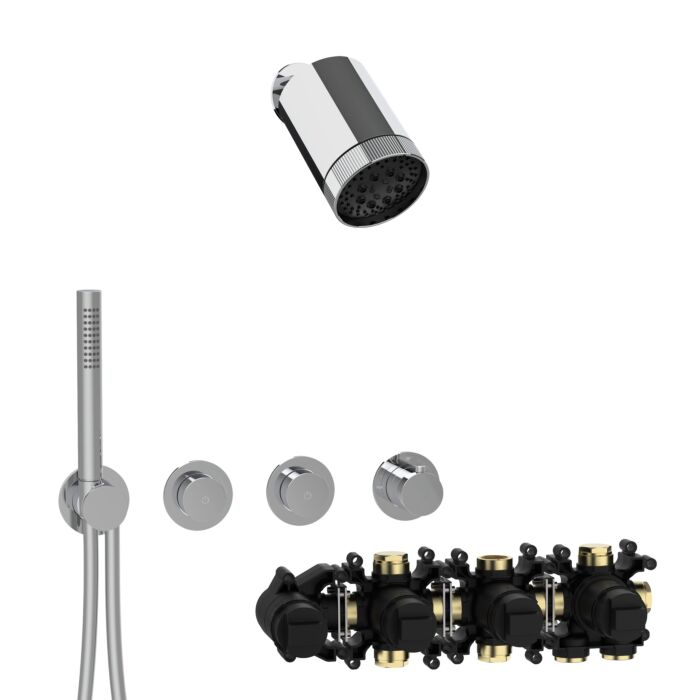

herzbach MODUL7 PUSH thermostat set P-SP3 with SPOT Multi
and hand shower for use in the shower area
SET SCOPE
70.720003. 2000 .09 MODUL7 PUSH thermostat installation unit
70.702003. 2000 .01 MODUL7 PUSH thermostat color set for 2 Verbraucher
11.044286. 2000 .01 LIVING SPA wall-mounted rain shower SPOT 102x142mm Multi
MODUL7 PUSH thermostat installation unit
-for 2 Verbraucher
MODUL7 Thermostat
-rotatable thermostat cartridge for regulating the temperature range from 20°C-55°C
-Manually unlockable hot water lock at 38°C as scalding protection
-Brass operating handle
-Brass module cover Ø 70 mm with sketched temperature scale
2 MODUL7 PUSH flow control valves
-Start + stop the water flow by pressing the PUSH flow valves
-smooth and stepless volume control with a comfortable 90° operating radius
-Brass operating handles
-Brass module panels Ø 70 mm
MODUL7 shower holder set
-Shower connection bend with concealed hose connection
-MODUL7 shower hose 1500 mm with rotating cone
- 2000 -jet brass hand shower
-Brass module cover Ø 70 mm
LIVING SPA Wall-Mounted Rain Shower SPOT Multifunction 3
-Jet types: Rain / Rain soft / Massage
-Change of jet type using the ring switch on the shower head
-Dimensions 102 mm x 142 mm
-incl. round Ø 70 mm and square 70 mm x 70 mm brass wall panel
-centered angle of inclination of the shower head 45°
-Shower head can be tilted up / down by 15°
-Clean effect
Module center distance 105 mm
min. operating pressure: 1930 .5 bar
max. operating pressure: 5 bar
integrated backflow preventers and dirt strainers
intrinsically safe against backflow
Chrome surface
Manufacturers herzbach / Product group M7 SETS CHROME
Art no. 70.702723. 2000 .01
