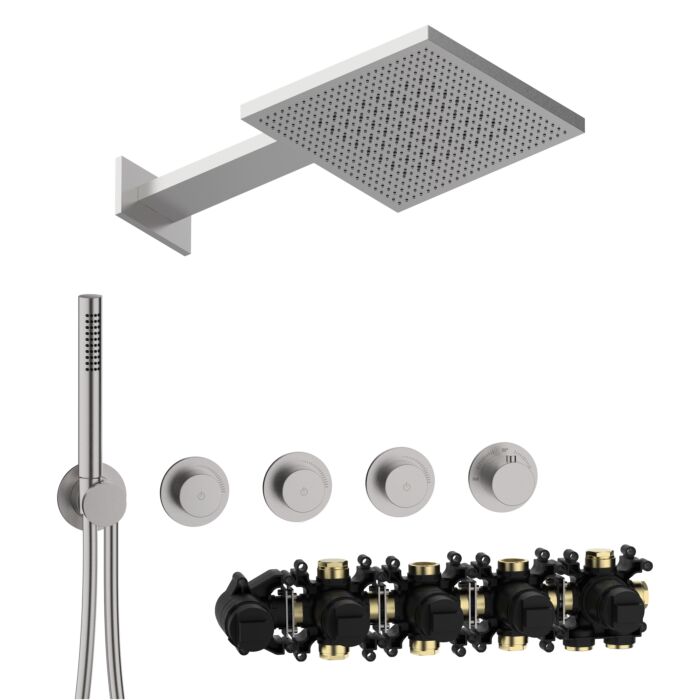

herzbach MODUL7 PUSH thermostat set P-TF2 with TWIN FLOW and hand shower
for use in the shower area consisting of:
SET SCOPE
70.730003. 2000 .09 MODUL7 PUSH thermostat installation unit
70.703003. 2000 .09 MODUL7 Thermostat color set for 3 Verbraucher
11.044277. 2000 .09 LIVING SPA wall-mounted rain shower TWIN FLOW
MODUL7 PUSH thermostat installation unit
-for 3 Verbraucher
MODUL7 Thermostat
-rotatable thermostat cartridge for regulating the temperature range from 20°C-55°C
-Manually unlockable hot water lock at 38°C as scalding protection
-Stainless steel operating handle
-Stainless steel module cover Ø 70 mm
2 MODUL7 PUSH flow control valves
-Start + stop the water flow by pressing the PUSH flow valves
-smooth and stepless volume control with a comfortable 90° operating radius
-Stainless steel handles
-Stainless steel module covers Ø 70 mm
MODUL7 shower holder set
-Shower connection bend with concealed hose connection
-MODUL7 shower hose 1500 mm with rotating cone
- 2000 -jet stainless steel hand shower
-Stainless steel module cover Ø 70 mm
LIVING SPA wall-mounted rain shower TWIN FLOW Multifunction 2
Spray type: Rain soft / Rain intensive
Rain field dimensions 300 mm x 300 mm
with mounting material for surface-mounted wall mounting
Clean effect
Module center distance 105 mm
min. operating pressure: 1930 .5 bar
max. operating pressure: 5 bar
integrated backflow preventers and dirt strainers
intrinsically safe against backflow
Surface matt brushed stainless steel
Manufacturers herzbach / Product group M7 SETS IX
Art no. 70.703723. 2000 .09
