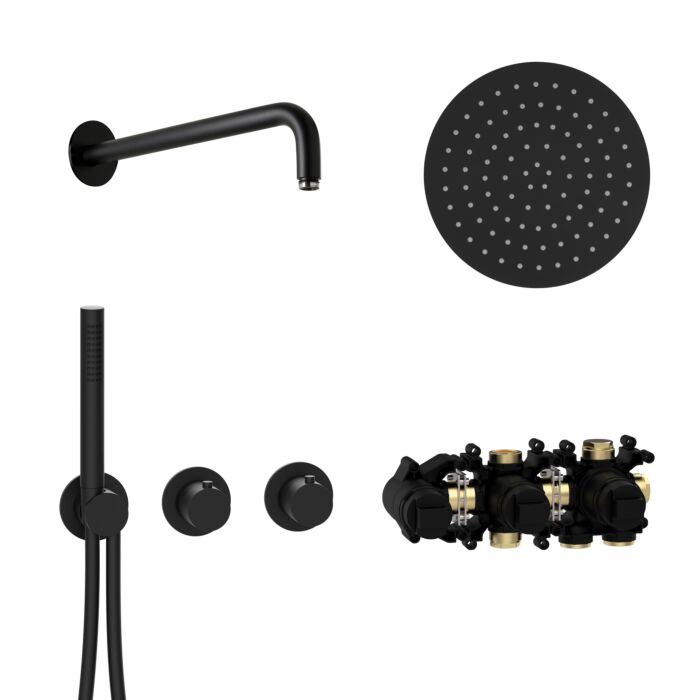

herzbach MODUL7 thermostat set T-RB250 with rain shower
and hand shower for use in the shower area
SET SCOPE
70.720001. 2000 .09 MODUL7 thermostatic installation body
70.702001. 2000 .01 MODUL7 thermostat color set for 2 Verbraucher
23.960350. 2000 .12 LIVING SPA wall arm 350 mm, Ø 70 mm
23.600250. 2000 .12 LIVING SPA slim rain shower Ø 250 mm
MODUL7 thermostatic installation body
-for 2 Verbraucher
MODUL7 Thermostat
-rotatable thermostat cartridge for regulating the temperature range from 20°C-55°C
-Manually unlockable hot water lock at 38°C as scalding protection
-Brass operating handle
-Brass module cover Ø 70 mm
MODUL7 shut-off and diverter valve
-ceramic 2-way diverter
-smooth and stepless volume control with a small operating radius
-comfortable separate consumer selection through haptic locking point
-Brass operating handle
-Brass module cover Ø 70 mm
MODUL7 shower holder set
-Shower connection bend with concealed hose connection
-MODUL7 shower hose 1500 mm with rotating cone
- 2000 -jet brass hand shower
-Brass module cover Ø 70 mm
LIVING SPA wall arm
-Projection 350 mm
-Shaping round angled
- 2000 /2"" connection thread
-Brass cover Ø 70 mm
LIVING SPA Slim Rain Shower
-Diameter Ø 250 mm
-Clean effect
Module center distance 105 mm
min. operating pressure: 1930 .5 bar
max. operating pressure: 5 bar
integrated backflow preventers and dirt strainers
intrinsically safe against backflow
Surface matt black
Manufacturers herzbach / Product group M7 SETS BLACK
Art no. 70.702711. 2000 .12
