Hewi 801 E-rotating support arm 801.50.50099 700 mm, pure white, flush / function button, yellow ring
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 500
Details

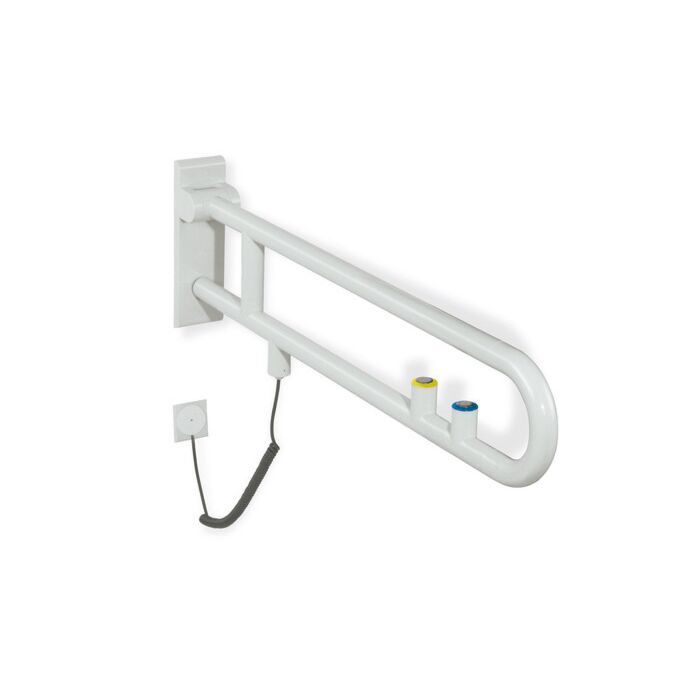

Hewi 801 E-rotating support arm 801.50.50099
- two parallel
- arranged one above the other
- Rods joined by a connecting arch with two integrated buttons
- loadable up to 100 kg
- can be folded up and braked down and turned left or right to the wall in the folded up position
- with continuous
- Corrosion-protected steel core and wall plate made of polyamide with an integrated steel core
- covert
- Corrosion-free and tested HEWI fastening material
- for different wall structures (please order separately)
- 78 mm wide and 259 mm high
- Rods Ø 33 mm
- Button with a blue ring to trigger the WC flush
- Button with a yellow ring to trigger a freely definable function
- Spiral cable with free cable ends for wall connection
- with white cover for flush-mounted box
- Control voltage max. 30V = SELV
- PELV
- Switching current up to max. 2A
- suitable for all common concealed cisterns with electr. control
- made of polyamide
