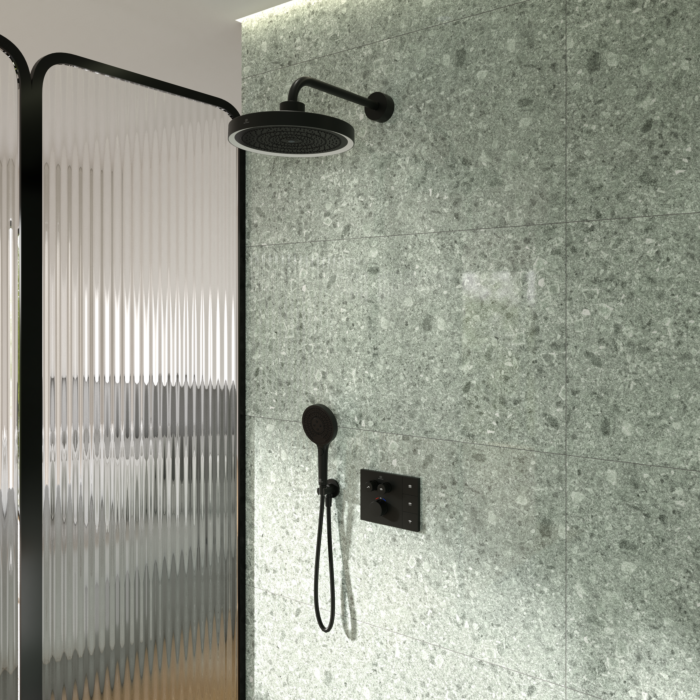

Ideal Standard CeraTherm Navigo Solos fitting package A7893XG
Shower moments in the best light – Ceratherm Solos for your personal shower ambience
Spa feeling with colorful accents – the Solos collection thermostatic shower system from Ideal Standard combines elegant design with precise technology and intuitive controls. The Ceratherm concealed thermostat with Navigo® technology guarantees precise temperature control and easy regulation of the water flow. The Solos 3-function shower heads and the overhead shower with LED light ring transform every shower into a personal wellness moment. The highlight: The LED light ring activates automatically via a motion sensor, is smart home compatible (Zigbee 3.0), and can be individually adjusted in color via an app – for atmospheric lighting and a true spa ambiance.
- consisting of A7894.. - Concealed shower thermostat kit 2 for final installation
- with optionally mountable frame for Solo's rain shower remote control
- two sampling points
- Backflow preventer
- Flush-mount kit requires 1 Easy-Box for installation (A1000NU - sold separately)
- Metal handle
- Rosette 213x157 mm
- Thermostatic cartridge with wax expansion element
- Hot water temperature limiter
- Temperature lock 40 °C
- Hot water temperature setting with scald protection
- DICHT-FIX system: separate sealing of each opening for optimal protection of the building against moisture and water.
- Noise behavior DIN4109 Group 1
- Service life according to DIN EN 200
- DIN EN 1111
- A1000.. - Flush-mounted kit 1 Easy-Box for flush-mounted single-lever mixers and thermostats (with Navigo) Kit 2
- Wall installation
- Pre-assembly in the shell construction
- with cleaning template and flushing block
- G1/2 connectors
- DZR dezincification resistant
- Installation depth 73-95 mm
- Height adjuster 5-40 mm
- Noise behavior according to DIN 4109 Group 1
- Weight 0
- 986 kg
- A7890.. - Rain shower
- 3-function
- Types of jets: Rain
- gentle rain and massage
- Ø 330 mm
- ball joint
- EasyClean
- G1/2 connection
- with wall connection
- with LED light ring
- white
- sensor-controlled
- Color change only possible via Zigbee
- Mains operation (230 V)
- Beam mode selection via remote control (included in delivery)
- Battery operation (6 V)
- Weight 3
- 970 kg
- A7896.. - Solos hand shower
- 3-function
- Types of jets: Rain
- Massage and gentle rain
- Ø 130 mm
- Navigo push-button switching
- EasyClean
- G1/2 connection
- Weight 0
- 700 kg
- BC807.. - Wall connection bend, flush-mounted
- with shower holder
- Backflow preventer
- DVGW-intrinsically safe
- Shower hose connection G1/2
- Wall connection G1/2
- Weight 0
- 187 kg
- BE175.. - Shower hose
- Idealflex
- G1/2 connection
Always the same perfect water temperature throughout the entire shower – without readjusting.
Full showering comfort at reduced costs
Intuitive controls: Changing spray patterns on the hand shower is easy with a simple push of a button.
Intuitive controls: Simple control of the shower system with just one button – on/off at the touch of a button, water volume with a gentle turn.
Extra-wide hand shower with Navigo® spray selector: Rain, SilkRain, Active Massage
Large overhead shower for a special showering experience with 3 spray patterns: Rain, SilkRain, 2nd Skin Rain
The smart LED rain shower switches on and off via motion detector (independent of water flow), is fully integrable into the smart home (Zigbee) and can be conveniently adjusted in color via smartphone.
LED mood lighting of the shower head controllable via app or smart home (Zigbee)
Hot water temperature setting reliably protects against accidental scalding – perfect for the family bathroom.
Reliably protects against accidental scalding – carefree showering for the whole family.
Built-in model with remote control, flexibly mountable in the shower area
