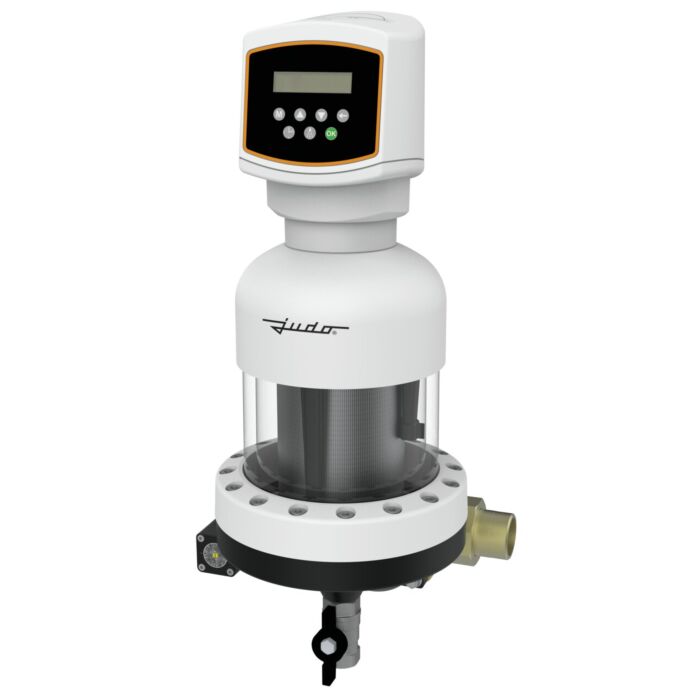

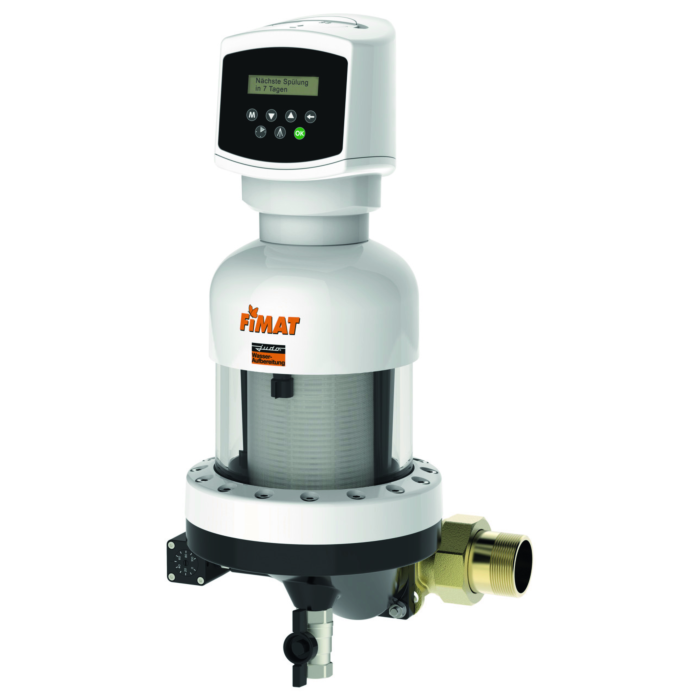

Judo Fimat automatic backwash protection filter 8020546 2", 30 µm special mesh size, automatic backwash

Judo Fimat automatic backwash protection filter 8020546

• for the filtration of fine-grained
• solid contaminants in drinking and industrial water systems with increased solid content (for drinking water with clean Filter with 1930
• 2 bar pressure loss
• For domestic water and heavily polluted water, a lower flow rate is to be expected
• Expert advice required)
• Filter housing PN 10
• inside and outside corrosion-resistant plastic coated
• Built-in rotary flange with bayonet connection made of brass with screw connections (threaded connection according to DIN EN 10226- 2000 )
•

• Horizontal or vertical installation possible by turning the QUICKSET-E built-in rotary flange
• Stainless steel filter mesh
• Backwashing of the sieve insert according to the point rotation system with simultaneous cleaning of the sight glass
• with automatic backwash to trigger the operating and backwash positions
• Plug-in power supply 230 V/50 Hz
• patented safety module for closing the flush valve in the event of a power failure
• Control via keyboard and LCD display
• Time-controlled automatic backwash (adjustable from 4 hours to 50 days)
• with differential pressure switch (adjustable differential pressure up to 2000 bar) to trigger the backwash
• Hand release via button
• Potential-free input for remote triggering of a backwash and potential-free outputs for transmitting messages
