Judo Fimat automatic backwash protection filter 8020547 2", 320 µm mesh size, automatic backwash

Name: Judo Fimat automatic backwash protection filter 8020547 2", 320 µm mesh size, automatic backwash
Brand: Judo
SKU: 8020547
Price: 3740.36 EUR
Availability: InStock

Be the first to review this product

€3,740.36

instead of €4,737.33 **

-21% You're saving €996.97

Incl. 19% VAT , plus shipping costs

Available for order delivery time: 10-28 working days

Shipping Cost Points: 400

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Illustration may differ from the actual product. Delivery without accessories and decoration.

Details

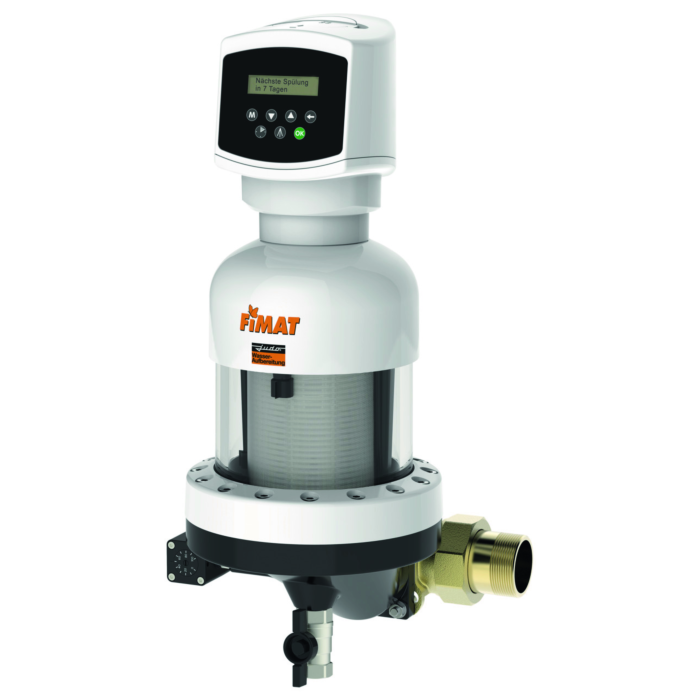

Judo Fimat automatic backwash protection filter 8020547

for filtration of fine-grained
solid contaminants in drinking and service water systems with increased solids content (for drinking water with clean Filter with 1930
2 bar pressure loss
For domestic water and heavily polluted water, a lower flow rate is to be expected
Expert advice required)
Filter housing PN 10
inside and outside corrosion-resistant plastic coated
Built-in rotary flange with bayonet connection made of brass with screw connections (threaded connection according to DIN EN 10226- 2000 )
Horizontal or vertical installation possible by turning the QUICKSET-E installation rotary flange
Stainless steel filter mesh
Backwashing of the sieve insert according to the point rotation system while simultaneously cleaning the sight glass
with automatic backwash to trigger the operating and backwash positions
Plug-in power supply 230 V/50 Hz
Patented safety module for closing the flush valve in the event of a power failure
Control via keyboard and LCD display
Time-controlled automatic backwash (adjustable from 4 hours to 50 days)
with differential pressure switch (adjustable differential pressure up to 2000 bar) to trigger the backwash
Hand release via button
Potential-free input for remote triggering of a backwash and potential-free outputs for transmission of messages
