- Filter housing made of grey cast iron PN 10
- inside and outside corrosion-resistant plastic coated
- Flange connection according to DIN EN 1092-2
- Stainless steel filter mesh
- Backwashing of the sieve insert according to the point rotation system while simultaneously cleaning the sight glass
- Differential pressure measurement with automatic backwash for setting the operating and backwash positions by servomotor
- separate control box
- Backwashing dependent on time and differential pressure through additional differential pressure gauge with adjustable differential pressure up to max. 2 bar
- with potential-free contact for remote transmission of the fault message
- with function and fault indication via LED and buzzer
- Power supply (230 V/50 Hz) via connection cable (approx. 3 m) with plug
- for drinking water up to 30 °C
- Operating pressure 2000
- 5-10bars

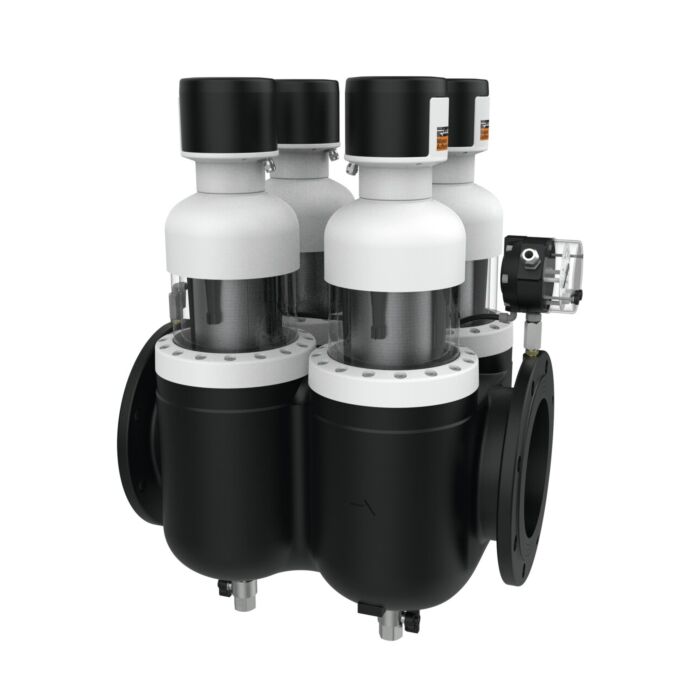

Judo Profimat backwash protection filter 8020055 JPF-QC-ATP, 320 µm special mesh size, DN 200, automatic backwash
€20,655.32
instead of
€26,682.99
**
-23%
You're saving
€6,027.67
Incl. 19% VAT ,
plus shipping costs
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 400
Details
Judo Profimat backwash protection filter 8020055
Notice
Please note that gas and electric appliances require increased mains voltage for proper operation. These appliances are not equipped with a two-pin mains plug. The installation of non-pluggable appliances must be carried out by the respective network operator or a certified specialist company, which can also assist you in obtaining any necessary approval from the relevant network operator for the installation of the appliance.
