Judo Profimat backwash protection filter 8020610 JPF-QC-ATP, 2000 2000 /4", 100 my mesh size, automatic backwash

Name: Judo Profimat backwash protection filter 8020610 JPF-QC-ATP, 2000 2000 /4", 100 my mesh size, automatic backwash
Brand: Judo
SKU: 8020610
Price: 2489.69 EUR
Availability: InStock

Be the first to review this product

€2,489.69

instead of €2,922.62 **

-15% You're saving €432.92

Incl. 19% VAT , plus shipping costs

Available for order delivery time: 10-28 working days

Shipping Cost Points: 400

Skip to the end of the images gallery

Skip to the beginning of the images gallery

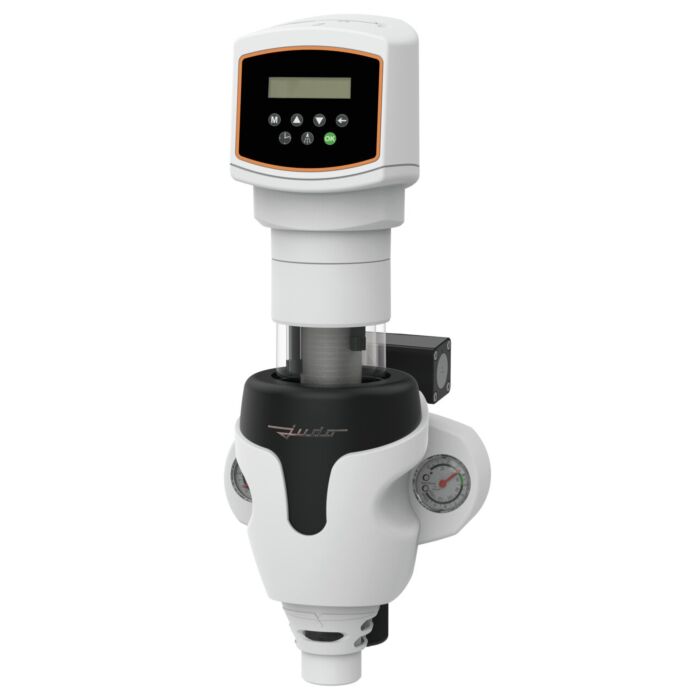

Illustration may differ from the actual product. Delivery without accessories and decoration.

Details

Judo Profimat backwash protection filter 8020610

Filter housing PN 16
Built-in rotary flange with patented bayonet lock made of brass with screw connection (threaded connection according to DIN EN 10226- 2000 ) and patented one-screw connection technology
Horizontal or vertical installation possible
Stainless steel filter mesh
Backwashing of the sieve insert using a point rotation system while simultaneously cleaning the sight glass
with integrated free outlet
with automatic backwash to trigger the operating and backwash positions
Plug-in power supply 230 V/50 Hz
Patented safety module for closing the flush valve in the event of a power failure
Control via keyboard and LCD display
Time-controlled automatic backwash (adjustable from 4 hours to 50 days)
with differential pressure switch (adjustable differential pressure up to 1930
6 bar) to initiate the backwash
Hand release via button
Potential-free input for remote triggering of a backwash and potential-free outputs for transmission of messages (I/O cable set required)
Pressure gauge and Thermometer
for drinking water up to 30 °C
max. operating pressure 2000
5-16bars

Notice

Please note that gas and electric appliances require increased mains voltage for proper operation. These appliances are not equipped with a two-pin mains plug. The installation of non-pluggable appliances must be carried out by the respective network operator or a certified specialist company, which can also assist you in obtaining any necessary approval from the relevant network operator for the installation of the appliance.

Shipping information: We ship electrical products exclusively to Germany, France, Poland, Belgium, Austria, Slovenia, Spain and the Netherlands.
