- TÜV type tested according to DIN EN 12050
- ready to plug in
- is suitable for faecal-free waste water above and below the backflow level
- Can be installed in commercially available pre-wall systems
- Hand wash basins can be connected
- Shower
- Bidet and softening systems for detached and semi-detached houses
- disposes of condensed water from refrigerated counters and air conditioning systems
- Waste water from dishwashers
- in tea kitchens and hot water up to 55 °C or briefly 70 °C
- Weight: 4kg
- Behälter : 135x320x176mm
- 2000 pressure outlet
- 2 inlet nozzles 50 mm
- 2000 inlet above 40 mm
- Connection Cuffs
- plug-in seals
- outlet elbow (elastomer)
- integrated check valve
- Lüftung with activated carbon filter
- submersible pump
- vertical
- single stage
- safe to run dry
- mounted in Behälter
- automatically turning on again
- temperature-dependent motor protection
- Primary seal: mechanical seal
- Motor housing and rotor shaft made of stainless steel
- Plastic pump housing and impeller
- Degree of protection: IP 44
- free passage: 10 mm
- Flow rate: Q max 4
- 3 cbm/h
- Head: H max 5 m
- Motor power: P2 = 110W
- Speed: 2900 rpm
- Voltage: 2000 /N/PE 230V
- 50Hz
- Cable: 2 m H05VV-F 3G0
- 75

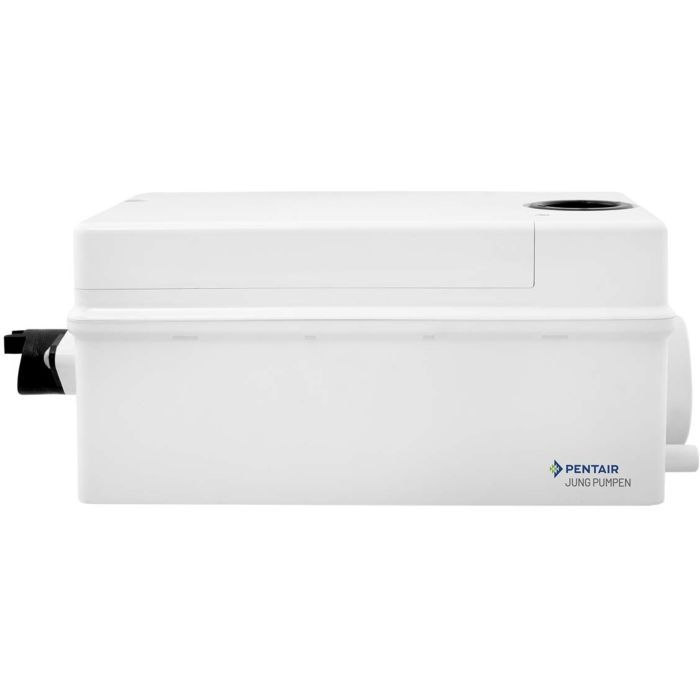

Jung Hebefix waste water lifting station JP48727 H max. 5 m, Q max. 4.3 m3/h
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 3500
Part Number: JP48727
Details
Jung Hebefix waste water lifting station JP48727
Notice
Please note that gas and electric appliances require increased mains voltage for proper operation. These appliances are not equipped with a two-pin mains plug. The installation of non-pluggable appliances must be carried out by the respective network operator or a certified specialist company, which can also assist you in obtaining any necessary approval from the relevant network operator for the installation of the appliance.
Downloads (6)
Product Safety
Manufacturer
JUNG PUMPEN GmbH
E-Mail
info@jung-pumpen.de
Address
Industriestraße 4-6
33803 Steinhagen
Germany
