- Control unit for monitoring the tightness of the oil chamber located between the motor and pump in explosion-proof submersible motor pumps of the US 73 Ex and UFK series.
- A red warning light illuminates when water enters the oil chamber.
- Ex protection type (Zone 1 and 2) Ex II (2) G (Ex ia) IIC/IIB
- Controller for 1N/PE x 230 V
- 50 Hz operating voltage consisting of 1x ISO housing with transparent cover
- Dimensions including screws (H x W x D): 180 x 130 x 100 mm
- IP 54 1x Electronics with transformer and indicator lamp
- 1 x special electrode with 10 m cable
- 1x potential-free normally open contact for fault signaling

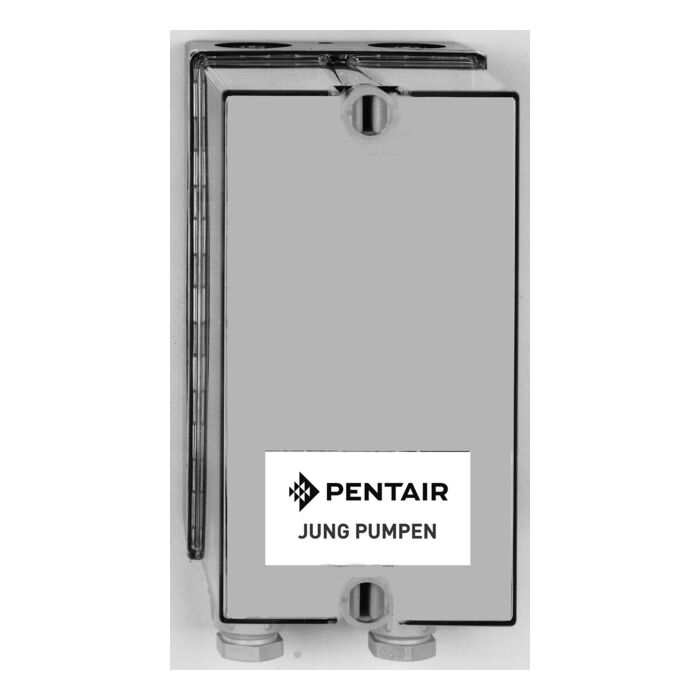

Jung Pumpen E Seal Control Device JP00249 for explosion-proof pumps
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 100
Part Number: JP00249
Details
Jung Pumpen E Seal Control Device JP00249
Notice
Please note that gas and electric appliances require increased mains voltage for proper operation. These appliances are not equipped with a two-pin mains plug. The installation of non-pluggable appliances must be carried out by the respective network operator or a certified specialist company, which can also assist you in obtaining any necessary approval from the relevant network operator for the installation of the appliance.
Downloads (2)
Product Safety
Manufacturer
JUNG PUMPEN GmbH
E-Mail
info@jung-pumpen.de
Address
Industriestraße 4-6
33803 Steinhagen
Germany
