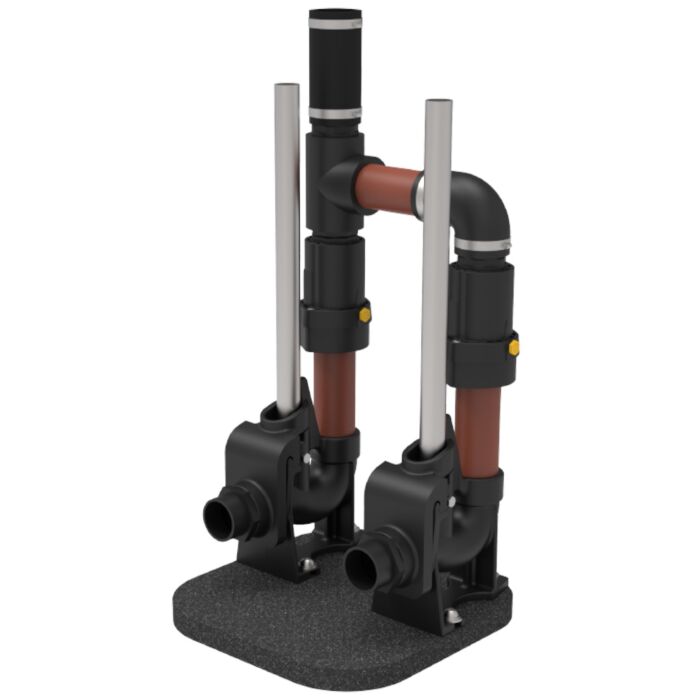

Jung Easyfix 50 Duo JP51000
Ready-to-connect installation kit for the
Shaft installation of a double pumping system
with US 62 ES - US 105 ES
(Pumps not included).
Consisting of 2 GR 50 sliding tube systems,
2 non-return valves R50, pressure line DN50
and 2 elastic connections for
Pressure pipe Ø 63 mm (straight & 90° bend).
Overall height: 795 mm (with vertical
elastic connection)
Base plate: 380 mm x 380 mm
Simple and quick installation
in shafts from 550 x 550 mm.
Includes plug-and-play control unit
EASY LOGO (152mm x 202mm x 90mm),
Connection cable 1.5m, ensures the
reciprocal operation of the pumps.
Reed contact circuit (10m cable) for
Alarm/peak load, acknowledgeable
Acoustic alarm, potential-free
Contact.
