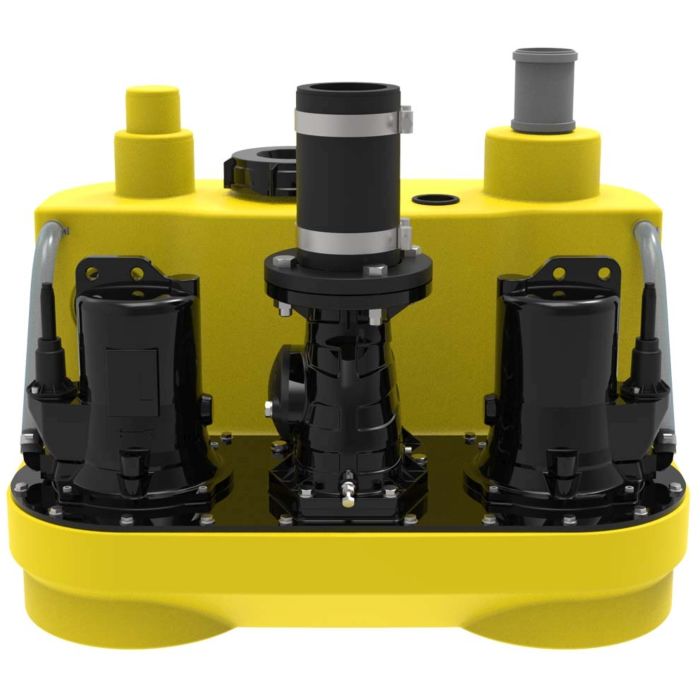

Jung Pumpen lifting system Compli 1025/4 S1 HL JP50840
400 V
vertical single-stage pump
Free passage 70 mm
Pressure pipe DN 100
Bearings: Ball bearings, grease-lubricated
Engine housing cast iron
Pump housing cast iron
Floodable, yes
Pressure outlet DN 80
Container volume 117 l
Weight 133 kg
Voltage 3/N/PE~400 V
Motor power P1: 3 kW
Motor power P2: 2.4 kW
Current 5.1 A
Power cable 10m H07RN-F
6G1.5 wires
Protection class IP 68
Insulation class F
Winding thermostat yes
CEE-16A plug
Notice
Please note that gas and electric appliances require increased mains voltage for proper operation. These appliances are not equipped with a two-pin mains plug. The installation of non-pluggable appliances must be carried out by the respective network operator or a certified specialist company, which can also assist you in obtaining any necessary approval from the relevant network operator for the installation of the appliance.
