- groundwater-tight according to DIN EN 13598-2
- with incline
- made of polypropylene (PP)
- Suitable for vehicles up to class D 400
- is used as a transfer shaft to gravity pipelines
- Segmented construction
- Manhole base with channel and DN 100 inlet and DN 200 outlet
- for process
- Cone with ramp and entry opening 610 mm
- Support ring for holding a manhole cover 610 mm
- Sealing of the individual segments with lip seals
- Dimensions without cover: Nominal diameter: 1000 mm
- Overall height: 1200 mm
- Sole pressure line from top: 1055 mm
- Sole free-floating surface from top: 895 mm
- Weight: 215 kg
- Standard installation depth of 1
- The depth of 2 m can be increased to 5 m by using shaft extensions.
- Enlarge by 7 m
- Accessories PSV-D 1000x500 SG(10)
- The required standing height of 2 meters is guaranteed.

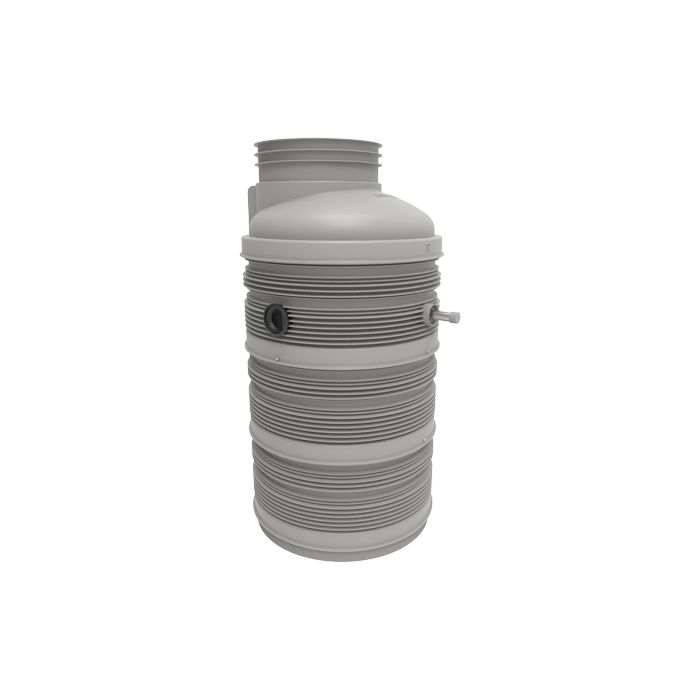

Jung Pumpen Pks plastic shaft JP44367 D 1000-DLE, buoyancy-proof
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 3500
Part Number: JP44367
Details
Jung Pumpen Pks plastic shaft JP44367
Notice
Please note that gas and electric appliances require increased mains voltage for proper operation. These appliances are not equipped with a two-pin mains plug. The installation of non-pluggable appliances must be carried out by the respective network operator or a certified specialist company, which can also assist you in obtaining any necessary approval from the relevant network operator for the installation of the appliance.
Shipping information: We ship electrical products exclusively to Germany, France, Poland, Belgium, Austria, Slovenia, Spain and the Netherlands.
Downloads (2)
Product Safety
Manufacturer
JUNG PUMPEN GmbH
E-Mail
info@jung-pumpen.de
Address
Industriestraße 4-6
33803 Steinhagen
Germany
