- A fully automatic floor drain pump empties a level-entry tiled shower and transports the wastewater to the nearest downpipe.
- It has a maintenance-free synchronous motor
- Embedded in the screed, the Plancofix forms the floor drain in tiled showers.
- The integrated pump transports the wastewater via pressure line to the next downpipe.
- Alternatively, the inlet can also be via one of the two DN 50 side connections (e.g. for shower channels)
- VDE approval
- for showers up to 20 l/min
- Floor drain, tileable or in stainless steel
- Pressure port with integrated check valve
- Sealing collar for the application of a thin-bed waterproofing membrane provided on site
- Cleaning the hydraulics without tools
- Collection container: 125 x 340 x 340 mm
- Pressure port: 1" internal thread
- lateral inlet nozzle DN 50
- Operating voltage: 1/N/PEx230 V
- Motor power P1: 65 W
- Motor protection: in the winding
- Protection class: IP 68
- Flow rate Q: max 46 l/min
- Delivery head H: max 2
- 5 m
- Cable: 5 m H05VV-F-3G0
- 75 GR
- Weight: 3
- 7 kg

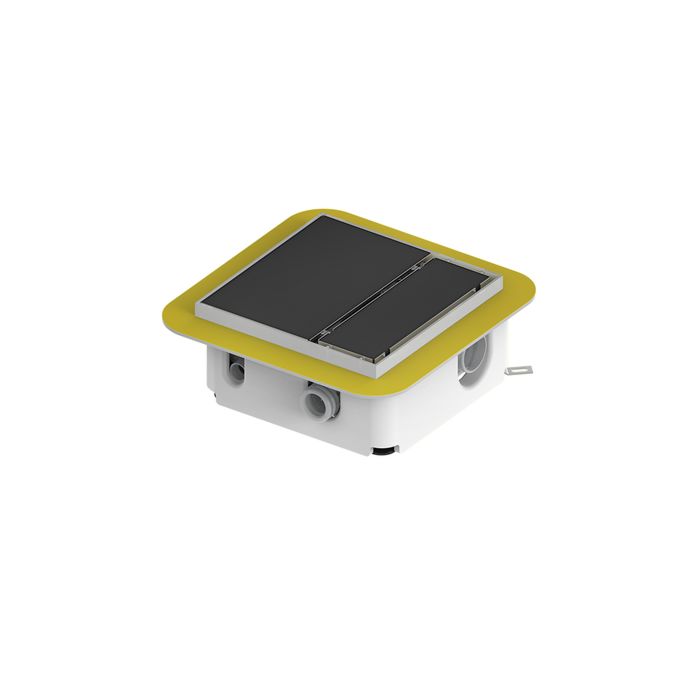

Jung Pumpen Plancofix floor drain pump JP44685 H max 2.3 m, Q max 1.8 m3/h
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 400
Part Number: JP44685
Details
Jung Pumpen Plancofix floor drain pump JP44685
Notice
Please note that gas and electric appliances require increased mains voltage for proper operation. These appliances are not equipped with a two-pin mains plug. The installation of non-pluggable appliances must be carried out by the respective network operator or a certified specialist company, which can also assist you in obtaining any necessary approval from the relevant network operator for the installation of the appliance.
Shipping information: We ship electrical products exclusively to Germany, France, Poland, Belgium, Austria, Slovenia, Spain and the Netherlands.
