- Vertical single-stage submersible motor pump with vertical and horizontal pressure outlet and high operational reliability
- dry-running, medium-side SIC mechanical seal and motor-side mechanical seal
- interchangeable
- longitudinally watertight potted cable entry
- engine housing
- Impeller and shaft made of stainless steel
- Sieve base made of plastic
- Cable 10 m H07 RN-F 3G1
- 0
- Free passage 10 mm
- Pressure port 2
- Pumped medium max 40 °C
- Maximum flow rate Q max 38 m3/h
- Maximum delivery head H 18 m
- Weight 26 kg
- Voltage 1/N/PEx230 V
- 50 Hz
- Electricity 9
- 8 A
- Power P2 1
- 6 kW
- Speed 2900 rpm
- Protection class IP 68
- Motor protection winding thermostats

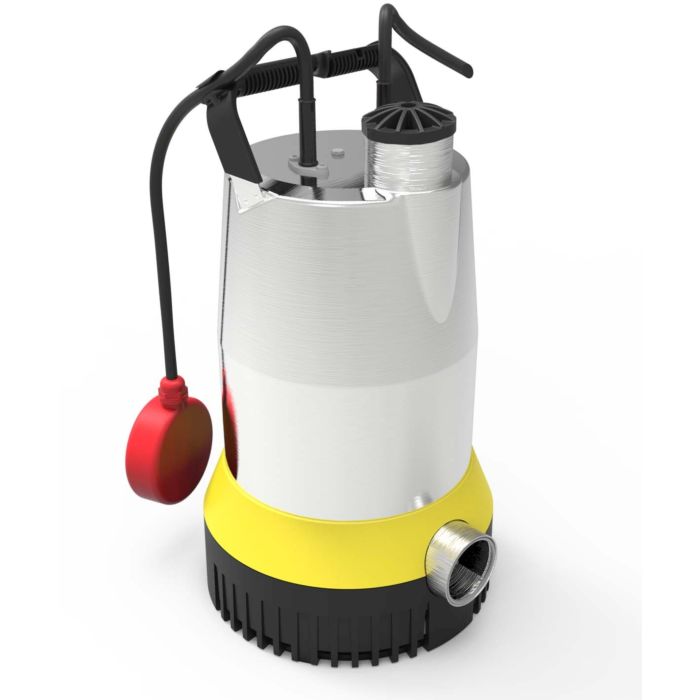

Jung Pumpen submersible motor pump JP47343 UV 635-3, 230 V, without plug, 10 m cable
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 3500
Details
Jung Pumpen submersible motor pump JP47343
Notice
Please note that gas and electric appliances require increased mains voltage for proper operation. These appliances are not equipped with a two-pin mains plug. The installation of non-pluggable appliances must be carried out by the respective network operator or a certified specialist company, which can also assist you in obtaining any necessary approval from the relevant network operator for the installation of the appliance.
Shipping information: We ship electrical products exclusively to Germany, France, Poland, Belgium, Austria, Slovenia, Spain and the Netherlands.
Downloads (6)
Product Safety
Manufacturer
JUNG PUMPEN GmbH
E-Mail
info@jung-pumpen.de
Address
Industriestraße 4-6
33803 Steinhagen
Germany
