- Article number: JP00226

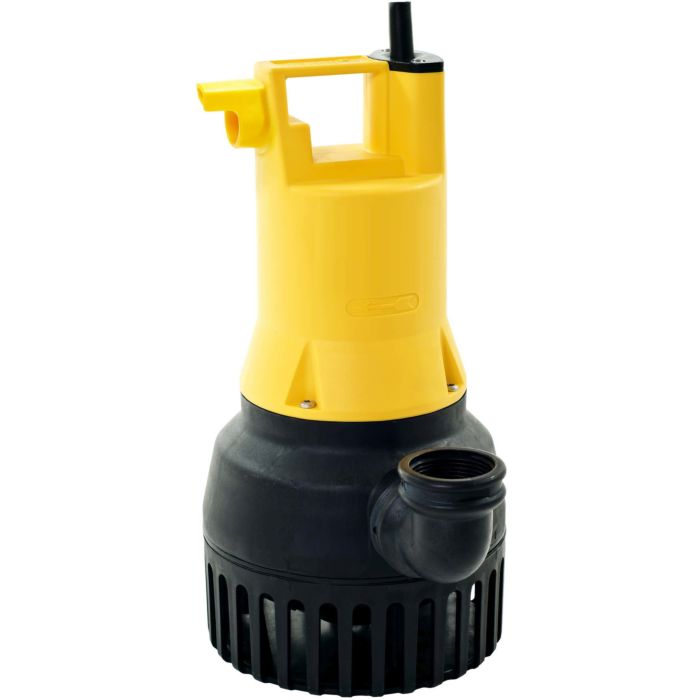

- Drainage submersible pump U6K E
- 10 m cable
- fully floodable
- Longitudinally watertight potted cable entry, vertical single-stage, dry-running safe
- Medium-side rotation-direction-independent silicon carbide mechanical seal, as well as oil chamber and radial shaft seal to the engine compartment
- Continuous operation possible when submerged, built-in, automatically restarting, temperature-dependent motor protection.
- Motor housing and rotor shaft (fully encapsulated) made of stainless steel
- Pump housing and impeller made of plastic
- 90° connecting elbow (2x 1 1/4" internal thread) included in delivery
- Power cord with Schuko plug
- VDE-tested
- LGA type-tested according to DIN EN 12050-2
- Protection class: IP 68
- Free passage: 10 / 20 mm
- Flow rate: Q = 15 - 1 m³/h
- Delivery head: H = 1 - 8.5 m
- Motor power: P2 = 0.49 kW
- Rotational speed: n = 2850 rpm
- Current type/voltage: 230 V (W-current)
- Cable length: 10 m
- Cable type: H07RN-F3G1.0
- Radial pressure port: 1 1/4", outside
- Weight: 6 kg
Jung Pumpen U6K E drainage pump JP00226 10 meter pipe
In Stock
delivery time: 1-3 working days
Shipping Cost Points: 500
Details
Jung Pumpen U6K E drainage pump
Notice
Please note that gas and electric appliances require increased mains voltage for proper operation. These appliances are not equipped with a two-pin mains plug. The installation of non-pluggable appliances must be carried out by the respective network operator or a certified specialist company, which can also assist you in obtaining any necessary approval from the relevant network operator for the installation of the appliance.
Shipping information: We ship electrical products exclusively to Germany, France, Poland, Belgium, Austria, Slovenia, Spain and the Netherlands.
