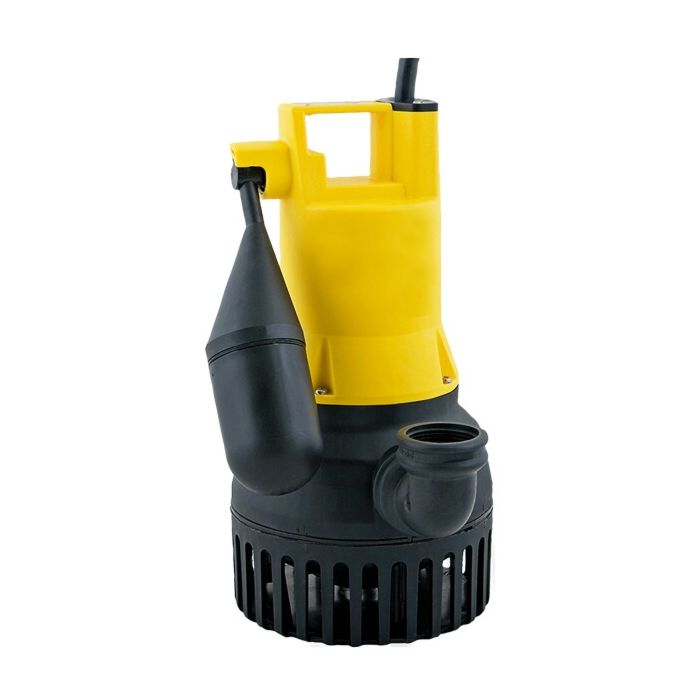

Jung Pumpen U6K ES drainage pump
- Article number: JP00227
- for drainage
- Submersible drainage pump
- 4 m cable with integrated automatic switching device
- fully floodable
- Longitudinally watertight potted cable entry, vertical single-stage, dry-running safe
- Medium-side rotation-direction-independent silicon carbide mechanical seal, as well as oil chamber and radial shaft seal to the engine compartment
- Continuous operation possible in the surfaced state
- Built-in, automatically restarting, temperature-dependent motor protection
- Motor housing and rotor shaft (fully encapsulated) made of stainless steel
- Pump housing and impeller made of plastic
- 90° connecting elbow (2x 1 1/4" internal thread) included in delivery
- Power cord with Schuko plug
- VDE-tested
- LGA type-tested according to DIN EN 12050-2
- Protection class: IP 68
- Free passage: 10 / 20 mm
- Flow rate: Q = 15 - 1 m³/h
- Delivery head: H = 1 - 8.5 m
- Motor power: P2 = 0.49 kW
- Rotational speed: n = 2850 rpm
- Current type/voltage: 230 V (W-current)
- Cable length: 4 m
- Cable type: H07RN-F 3G1.0
- Radial pressure port: 1 1/4", outside
- Weight: 5.5 kg
