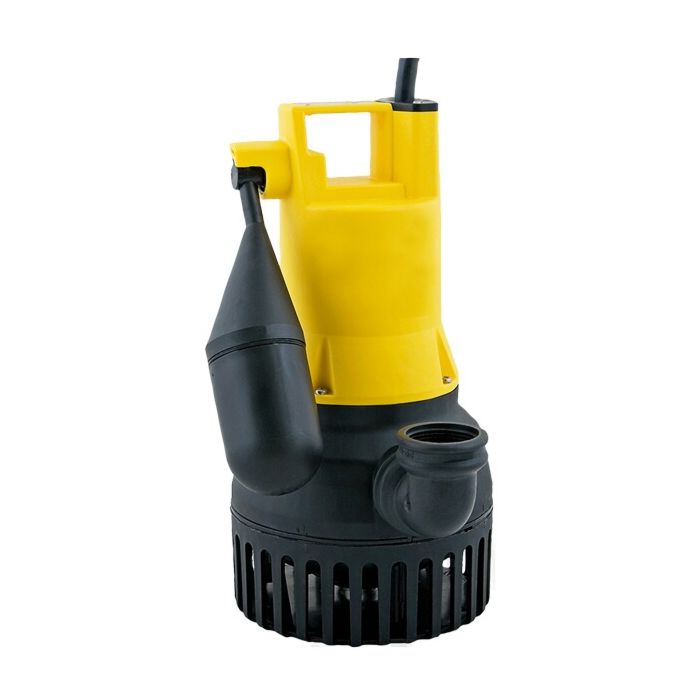

Jung U6K ES drainage pump
- Item number: JP00227
- for drainage drainage
- Drainage submersible pump
- 4 m cable with attached automatic switching
- fully submersible
- Longitudinally watertight cast cable entry, vertical single-stage, dry-running safe
- Silicon carbide mechanical seal independent of direction of rotation on the medium side, as well as oil chamber and radial shaft seal to the engine compartment
- Continuous operation in surfaced state possible
- built-in, automatically reactivating, temperature-dependent motor protection
- Motor housing and rotor shaft (fully encapsulated) made of stainless steel
- Pump housing and impeller made of plastic
- Connection elbow 90° (2x internal thread 2000 2000 /4") included in delivery
- Power cable with Schuko plug
- VDE-tested
- LGA type tested according to DIN EN 12050-2
- Protection class: IP 68
- free passage: 10 / 20 mm
- Flow rate: Q = 15 - 2000 m³/h
- Head: H = 2000 - 8.5 m
- Engine power: P2 = 1930 ,49 kW
- Speed: n = 2850 2000 /min
- Current type/voltage: W-current 230 V
- Cable length: 4 m
- Cable type: H07RN-F 3G1, 1930
- Pressure nozzle radial: 2000 2000 /4 ", outside
- Weight: 5.5 kg
