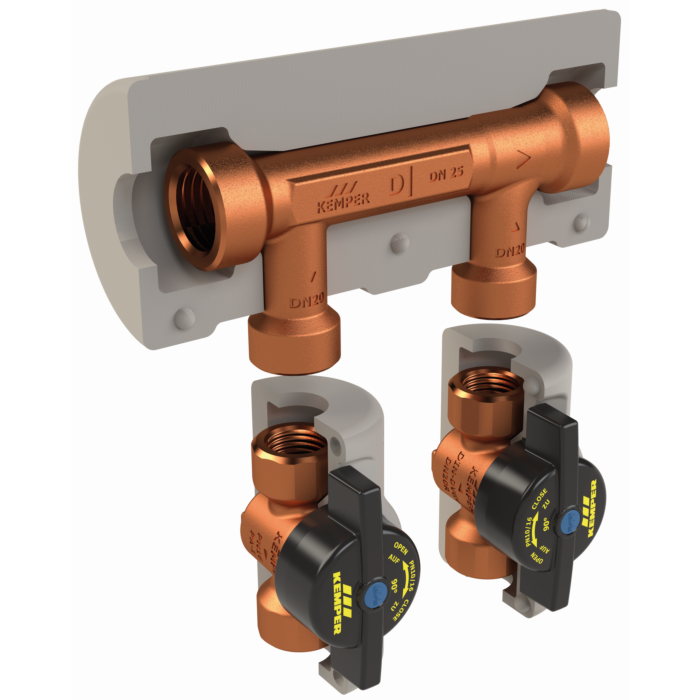

Kemper flow divider group 6500601500
- In ring main installations, this results in forced flow and continuous water exchange for cold drinking water (PWC) and hot drinking water (PWH).
- Flow divider based on the Venturi principle
- including dynamic cartridge
- with wet cell supply and wet cell return lines
- Metal parts in contact with the medium made of dezincification-resistant and corrosion-resistant red brass
- resistant to aggressive water
- Flow divider passage/wet cell supply and return lines with internal thread
- maintenance-free
- dead space free
- with VAV full-flow shut-off valves with internal thread
- Figure 385 00
- maintenance-free EPDM spindle seal
- Removable inner top section TOP-ENTRY
- with EPDM sealing body and red brass locking body
- with insulation shell
- Valve(s) with DVGW approval
- according to DVGW worksheet W 570
- according to UBA assessment criteria
- up to DN 32 sound insulation approval according to DIN EN ISO 3822 class 1
- Insulation shells, building material class B1 according to DIN 4102
- DIN EN 13828
- PN 16
- Maximum operating temperature 90 °C
