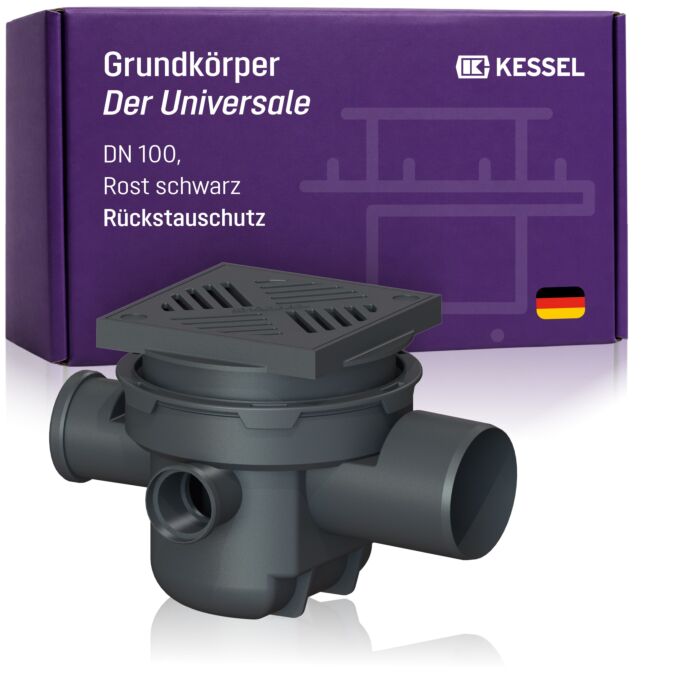

Boiler base body The Universal 27611 DN 100, slotted grate, plastic, black

Boiler base body The Universal DN 100

• Boiler cellar drain DN 100 KE27611 Universal
• m. Rost
• 200x200
• black
• Kessel basement drain "The Universal" made of plastic (PP),
• with removable backflow preventer and manually lockable emergency closure,
• Odor trap height 60 mm,
• with mud bucket
• Discharge rate 1.8 l/s,
• two DN 50 inlets and one DN 70 inlet with blind plugs.
• Plastic attachment piece
• telescopically height-adjustable from 25 mm to 65 mm,
• Plastic slotted grate.
• Design: Basement drain with backflow preventer
• Standard: DIN EN 13564 Type 5
• Dimension: DN 100 (OD 110 mm)
• Outlet: 2.5 degrees (lateral)
• Inlets: with three inlets
• Top piece/slotted grate: black plastic
• Grate size: 200 x 200 mm
• Load class: K3 (300 kg)
