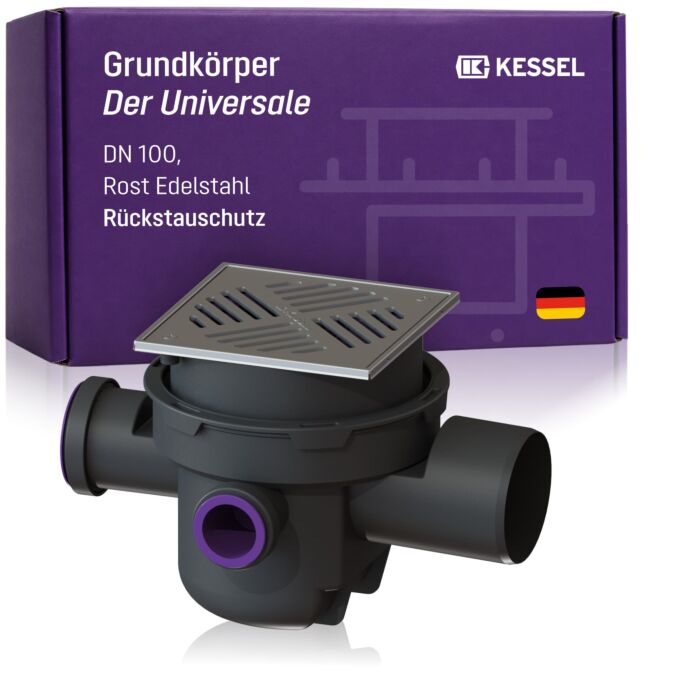

Boiler base body The Universal 27621 DN 100, slotted grate, plastic, black

Boiler base body The Universal DN 100

• Boiler cellar drain DN 100 KE27621
• Universal grate
• 200x200 stainless steel
• Kessel basement drain "The Universal One" made of plastic (PP),
• with removable backflow preventer and manually lockable emergency closure,
• Odor trap height 60 mm,
• with mud bucket
• Discharge rate 1.8 l/s,
• two DN 50 inlets and one DN 70 inlet
• with blind plugs.
• Plastic attachment with stainless steel grate frame
• telescopically height-adjustable from 20 mm to 65 mm,
• Stainless steel slotted grate, screwed together.
• Design: Basement drain with backflow preventer
• Standard: DIN EN 13564 Type 5
• Dimension: DN 100 (OD 110 mm)
• Outlet: 2.5 degrees (lateral)
• Inlets: with three inlets
• Attachment piece: Plastic
• Grate frame/slotted grate: Stainless steel
• Grate size: 200 x 200 mm
• Load class: K3 (300 kg)
