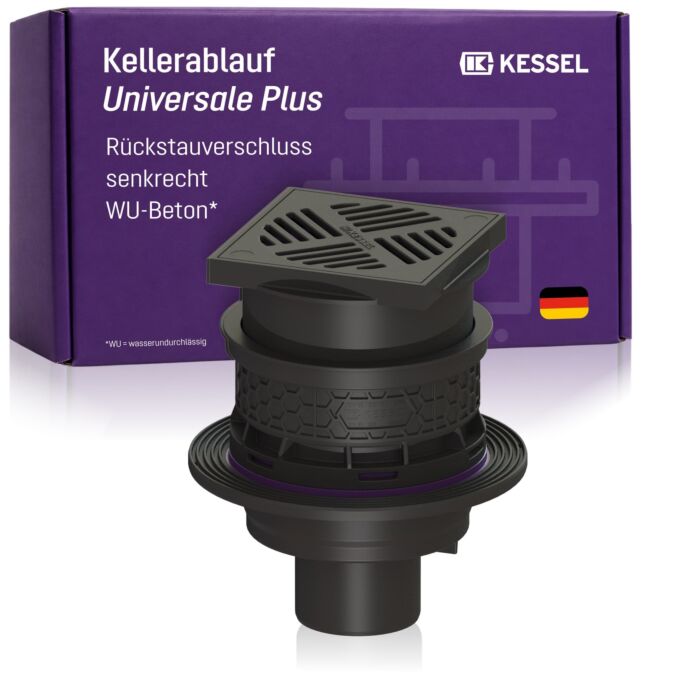

Kessel cellar drain Universal Plus 27631
- plastic
- with stockings
- vertical version
- Black plastic cover
- with a removable backflow preventer with two backflow flaps
- a manually lockable emergency closure and a mud bucket
- WU flange: factory pre-assembled
- Water seal height: 60 mm
- Installation situation: Installation in the base plate
- Wastewater type: fecal-free
- Backflow protection: Type 5 Mechanical backflow preventers
- General characteristics: Nominal diameter (DN): 100
- Color: black
- Standard: EN 1253, EN 13564
- Dimensions: Height: 270 mm
- Recess dimensions (length): 310 mm
- Recess width: 310 mm
- Diameter: 295 mm
- Installation depth (T) of: 293 mm
- Installation depth (T) up to: 350 mm
- Basic body: Nozzle
- Design: vertical
- Type of height adjustment: telescopic extension piece
- Adjustment range: 23 - 80 mm
- Cover material: black plastic
- Load class: K 3 (EN 1253-1)
- Length: 200 mm
- Width: 200 mm
- Height: 25 mm
- Mud bucket: yes
- Drainage capacity (l/s) with 10 mm backwater: 1.4 l/s
- Drainage capacity (l/s) with 20 mm backwater: 1.9 l/s
