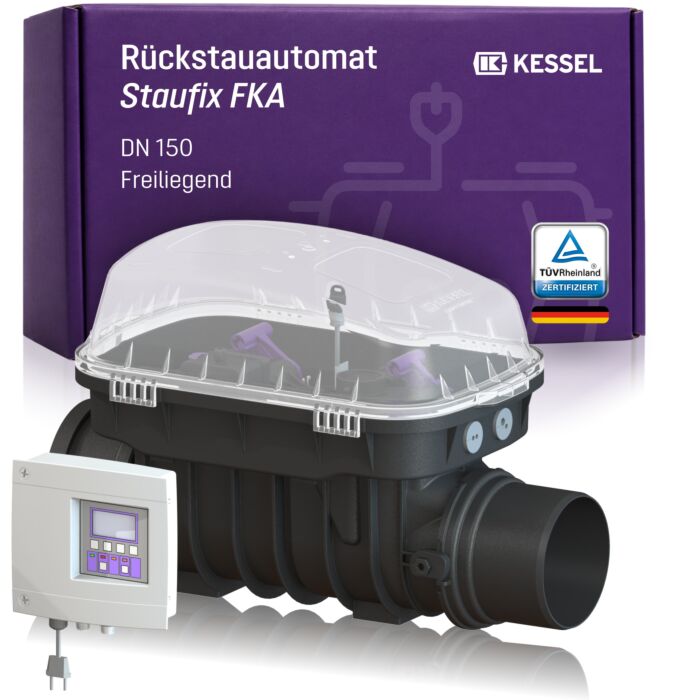

KESSEL Staufix FKA DN 150
Premium backflow protection for DN 150 wastewater pipes with motorized locking, optical level detection and maximum operational safety.
- Article number: 84150
- Nominal diameter: DN 150
- Outer diameter: 160 mm
- Wastewater type: Containing fecal matter
- Installation type: Exposed wastewater pipe
- Standard: EN 13564
- Backflow protection: Type 3
- Operating voltage: 230 V
- Probe protection rating: IP68
- Protection class of switching device: IP54
- Dimensions: 656 × 350 × 422 mm
- Weight: 10 kg
- Suitable for DN 150 pipes
- Automatic shut-off in case of backflow
- Additional emergency lock available
- Comfort switching device with logbook function
- Integrated USB and GSM interface
- Easy maintenance and inspection
- Approved for use with wastewater containing fecal matter
The KESSEL Staufix FKA DN 150 reliably protects larger drainage pipes against backflow. The combination of a motorized operating valve, optical probe, and manually lockable emergency valve ensures maximum safety. Thanks to the Comfort control unit, comprehensive diagnostic and monitoring functions are available.
- For large DN 150 pipe dimensions
- Automatic protection against sewer backflow
- Secure two-flap system
- Compatible with building management systems
- Premium solution for demanding building drainage
