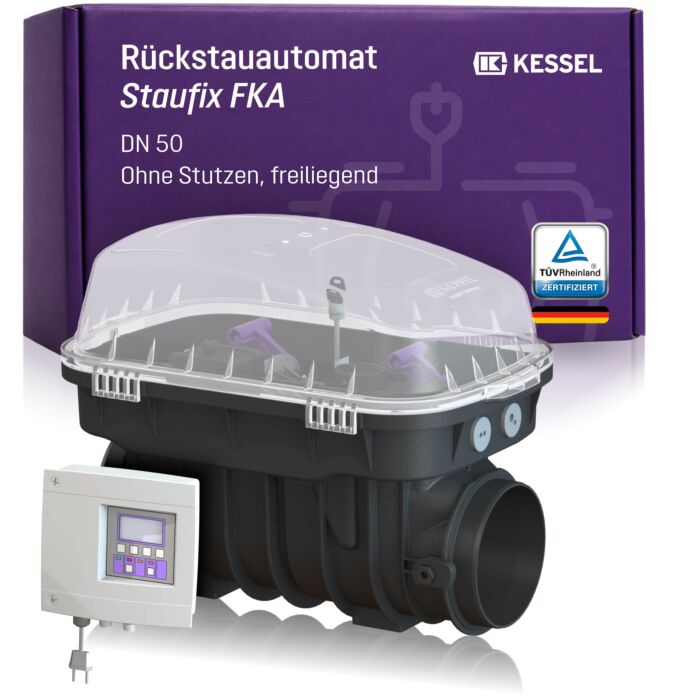

KESSEL Staufix FKA exposed without nozzle
The KESSEL Staufix FKA reliably protects buildings from backflow from the sewer system. The motorized closure system closes automatically in the event of backflow and is suitable for both sewage-containing and sewage-free wastewater.
- Article number: 84000
- Installation type: Exposed wastewater pipe
- Version: Without nozzle
- Wastewater type: Containing fecal matter
- Standard: EN 13564
- Backflow protection: Type 3
- Motorized flaps: 1
- Mechanical flaps: 1
- Control unit: Comfort
- Operating voltage: 230 V
- Probe protection rating: IP68
- Protection class of switching device: IP54
- Dimensions (L × W × H): 486 × 350 × 422 mm
- Weight: 10.5 kg
- Suitable for wastewater containing fecal matter and wastewater free of fecal matter.
- Automatic closure via motorized backflow preventer
- Additional hand-lockable emergency closure
- Comfort control unit with display and self-diagnostic system
- Optical probe with IP68 protection rating
- Optional connection to building management systems possible
- Maintenance-friendly, tool-free design
The Staufix FKA backflow preventer from KESSEL is the premium solution for protecting drainage systems located below the backflow level. Under normal operating conditions, the shut-off valves remain open, ensuring the free flow of wastewater. In the event of backflow, the optical sensor detects the rising water level and automatically activates the motorized shut-off valve. An additional mechanical emergency shut-off valve provides maximum safety. The convenient control unit offers comprehensive monitoring and diagnostic functions, including a logbook, USB interface, and GSM connectivity. Thanks to the modular KESSEL system, the unit can be expanded to include the Pumpfix F backflow pumping system if required.
- Motorized closure for maximum backflow protection
- Approved for use with wastewater containing fecal matter
- Comfortable control with self-diagnostic system
- Quick maintenance without special tools
- Expandable to the Pumpfix F backflow pumping system
