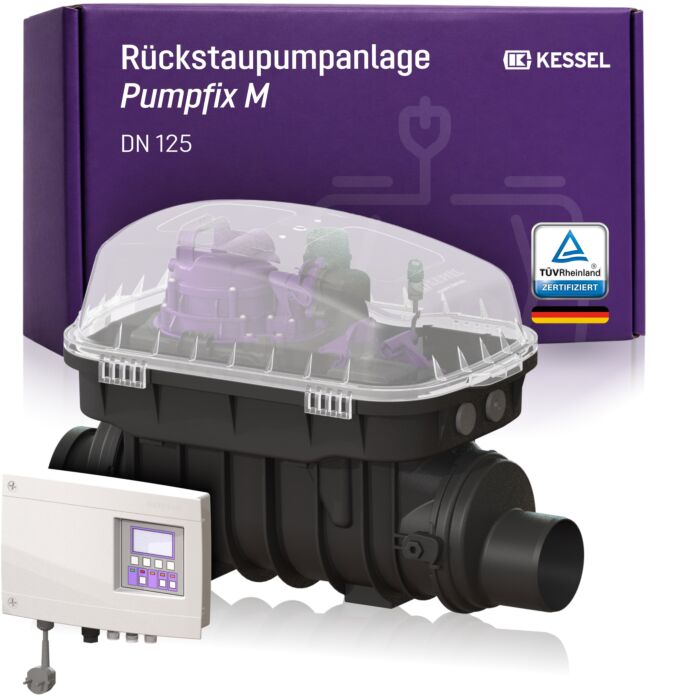

KESSEL backflow pumping system Pumpfix M DN 125
Backflow pumping system DN 125 for sewage containing fecal matter with automatic switchover to pumping operation in case of backflow. Maximum safety combined with energy-efficient operation.
Technical data
- Article number: 24125
- Nominal diameter: DN 125
- Outer diameter: 125 mm
- Flow rate: 11.5 m³/h
- Delivery head: 10 m
- Operating voltage: 230 V
- Power P1: 1.2 kW
- Protection rating: IP68
- Weight: 20 kg
- Installation situation: exposed
Product information
- DN 125 connection version
- Motorized backflow preventer with emergency closure
- SPZ 1000 integrated cutting pump
- Delivery head up to 10 m
- Flow rate up to 11.5 m³/h
- Comfort switching unit with USB and GSM option
The Pumpfix M DN 125 reliably protects buildings from backflow from the public sewer system. The unobstructed pipe cross-section ensures optimal drainage during daily operation. In the event of backflow, the motorized flap closes automatically, and the integrated macerator pump takes over the drainage. This ensures that sanitary and drainage systems remain functional even during a backflow event.
