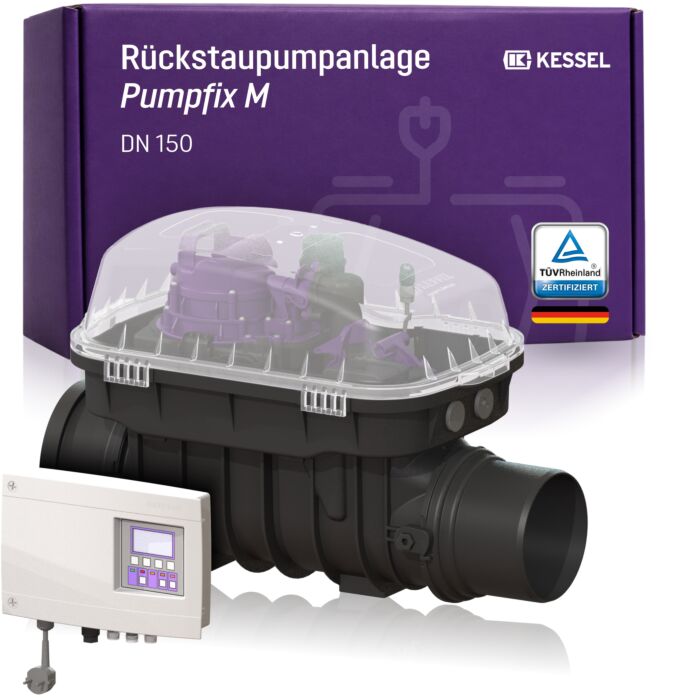

KESSEL backflow pumping system Pumpfix M DN 150
High-performance backflow pumping system DN 150 with motorized backflow valve and integrated cutting pump for reliable protection against sewer backflow.
Technical data
- Article number: 24150
- Nominal diameter: DN 150
- Outer diameter: 160 mm
- Flow rate: 11.5 m³/h
- Delivery head: 10 m
- Operating voltage: 230 V
- Power P1: 1.2 kW
- Protection rating: IP68
- Weight: 22.27 kg
- Installation situation: exposed
Product information
- DN 150 version for larger pipe cross-sections
- Combines backflow preventer and lifting station in one system
- Flow rate up to 11.5 m³/h
- Delivery head up to 10 m
- Integrated cutting unit pump SPZ 1000
- Comfort control unit with extensive diagnostic functions
The Pumpfix M DN 150 was specifically developed for drainage systems with larger pipe diameters. The intelligent hybrid system utilizes natural gravity during normal operation and only activates the pump in the event of actual backflow. This reduces energy consumption while ensuring maximum operational reliability. The robust construction and proven KESSEL technology make the system the ideal solution for demanding building drainage applications.
