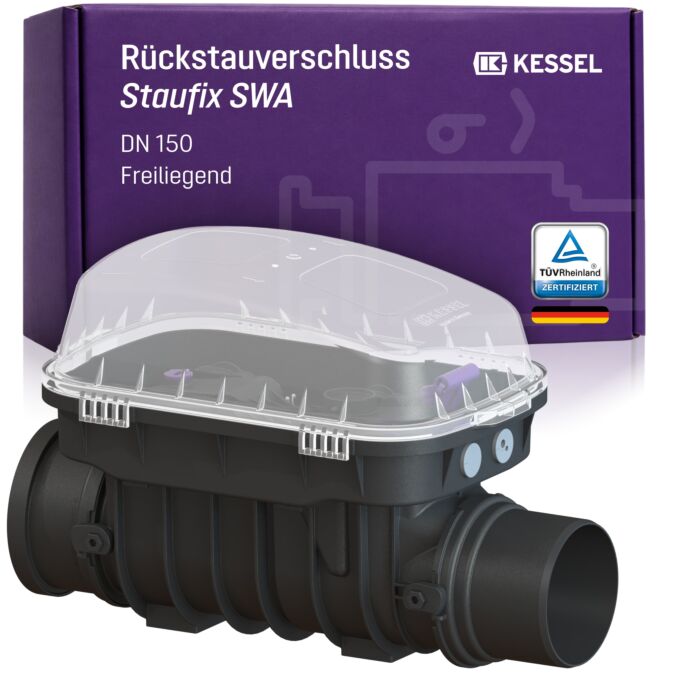

KESSEL Staufix SWA DN 150
High-performance backflow preventer DN 150 for exposed wastewater pipes. Reliably protects against backflow thanks to two mechanical flaps and an integrated emergency shut-off valve.
- Article number: 73150.10
- Nominal diameter: DN 150
- Outer diameter: 160 mm
- Wastewater type: fecal-free
- Backflow protection: Type 2
- Emergency lock: yes
- Dimensions (L × W × H): 656 × 350 × 422 mm
- Weight: 8.4 kg
- Standard: EN 13564
- Suitable for wastewater free of fecal matter
- DN 150 for high flow rates
- Two automatic backflow preventers
- Emergency lock integrated
- Ready-to-install version
- Transparent protective cover with clip closure
- Tool-free maintenance
- Expandable to Staufix FKA or Pumpfix F
The Staufix SWA DN 150 is the ideal solution for larger drainage systems with wastewater free of fecal matter. The system combines automatic backflow prevention with a manually lockable emergency shut-off valve. Thanks to its robust construction, ready-to-install delivery, and maintenance-friendly design, the backflow preventer is ideally suited for long-term building protection.
- Large nominal diameter DN 150 for high flow rates
- Reliable protection thanks to double flap technology
- Maintenance without tools
- Retrofittable to automated boiler systems
- Maximum safety in the event of backflow
