Kleinhuis connection terminal 4-16qmm 135.3
- Connection terminal according to DIN EN 60998, with 12 detachable terminal points, halogen-free.

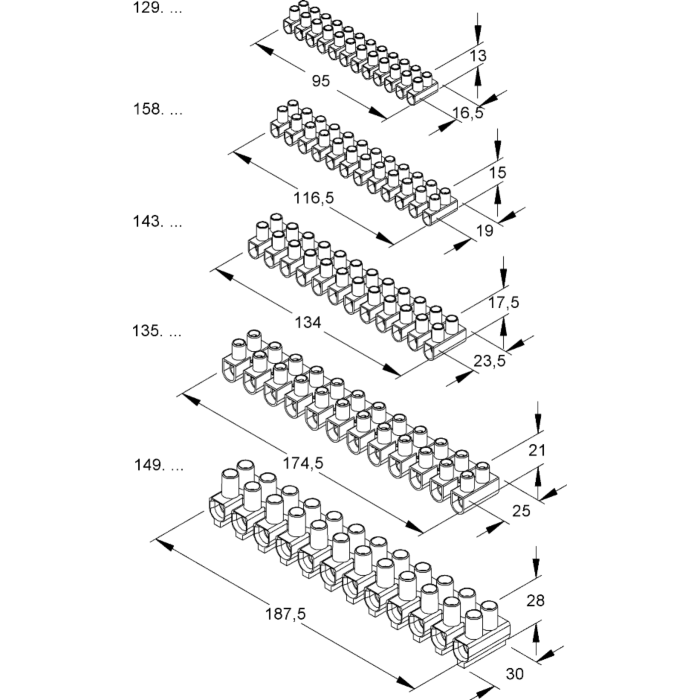

- Dimensions (approx.) H x W x L : 21 x 25 x 174.5 mm
- Clamping range single-wire, rigid: 4, 1930 - 16, 1930 mm²
- Flexible clamping range: 4, 1930 - 10, 1930 mm²
- Material of insulating part: PP, flame-retardant
- Material clamping bolt: tinned steel
- Material clamping screws: galvanized steel
- Max. ambient temperature according to DIN EN 60998: T80
- Rated voltage: 450 V
- Color: white
