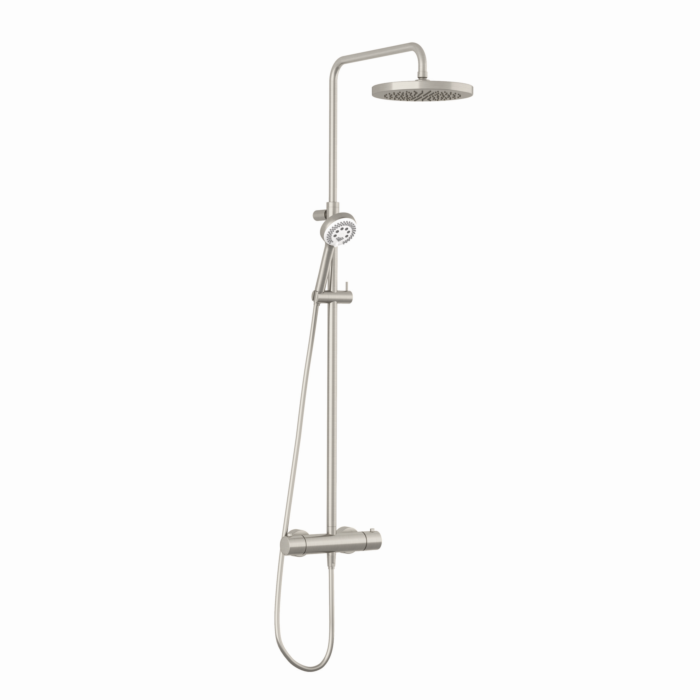

Kludi thermostat dual shower system 68082N5-00
- DN 15
- wall mounting
- with horizontal and vertical
- adjustable tube
- Slider adjustable horizontally and vertically
- Temperature control handle with hot water lock 40 °C
- with optional temperature stop at 43°C
- with ceramic shut-off valve as a 90°/90° rotary valve
- Shower outlet at bottom G 1/2
- Hand shower rotary valve to the rear
- Shower outlet at the top
- Shower head rotary valve forward
- Dirt-trapping screens
- Intrinsically safe against backflow
- with SUPARAFLEX shower hose G 1/2 x G 1/2 x 1600 mm
- with A-QA overhead shower
- Ø 245 mm
- Flow rate 16 l/min at 3 bar
- 3S hand shower DN 15
- Switchable to three beam patterns Booster
- Smooth
- volume
- Flow rate 13
- 5 l/min (booster) / 10 l/min (smooth) / 15 l/min (volume) at 3 bar
- with emptying function
- with mounting hardware
