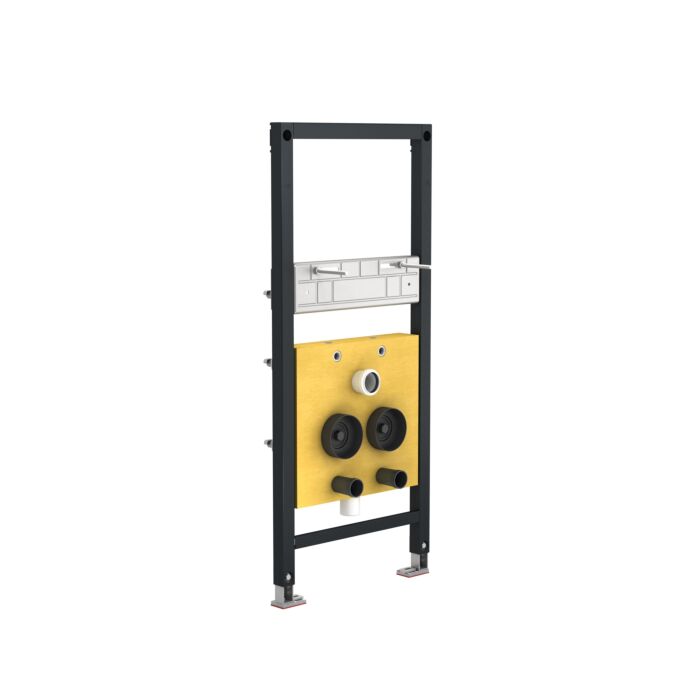

Mepa washbasin element 521027
- Pre-assembled mounting element for single-hole washbasin mixer tap
- for the installation of measuring capsules KOAX G 2
- for drywall installation
- for individual mounting in front of a solid wall or in a stud wall
- for rail mounting in front of a solid wall or a stud wall
- self-supporting mounting frame
- suitable for cladding with gypsum fiberboard or plasterboard
- powder-coated profile frame
- Height-adjustable footrests 0 – 240 mm with integrated anti-slip coating
- Rotatable base plates
- Compensating for drilling errors
- Depth suitable for installation in UW profiles UW 50 and UW 75 and MEPA-C profiles
- Center and meter mark markings for precise alignment of the axis center and mounting height of the element.
- Suitable for wall mounting with M10 threaded rods
- tool-free height-adjustable
- Anti-slip connection crossbars for water connection and water meter section
- Sequence
- ceramic attachment
- Hole spacing ceramic fastening 150 – 240 mm
- Soundproof and heat-insulated water meter section (hot/cold) for vertical installation
- Ready for connection, pre-assembled and leak-tested
- consisting of a one-piece cast water meter section made of red brass
- Primary side connections G3/4
- secondary side G1/2
- For common UP water meter brands KOAX G 2 to Q3 = 2
- 5 m³/h according to MID
- in looped-through design for integration into series or ring lines
- Red brass wall connections are mounted in a twist-proof and stress-free manner.
- Fittings and pipe ends with protective plugs
- hygienically sealed
- Insulating body made of closed-cell polyurethane foam (PUR)
- Thermal insulation 100% according to GEG/DIN 1988-200
- Thermal conductivity of box body 0
- 0.37 W/(mx K) at 40 °C
- Density > 55 kg/m³
- Fire behavior of building material class B2 according to DIN 4102-1
- Class E according to DIN EN 13501-1
- consists of a mounting kit for installation in stud walls
- Water meter section hot/cold
- Red brass
- Ready for connection, pre-assembled
- RAUPIANO drain bend DN 50 with rubber sleeve NW 32/40
- with construction protection plugs
- Construction protective caps for valves and water meter bases
- 2x threaded bolts M10
- Mounting hardware
