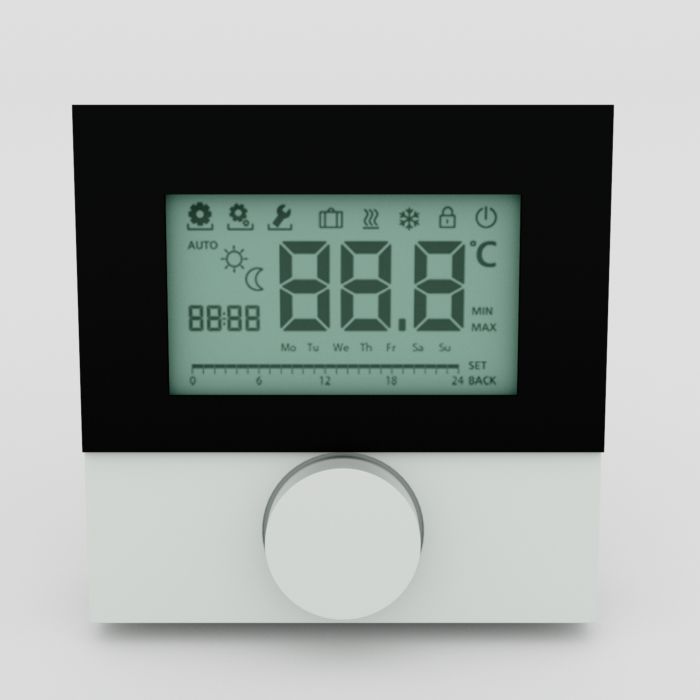

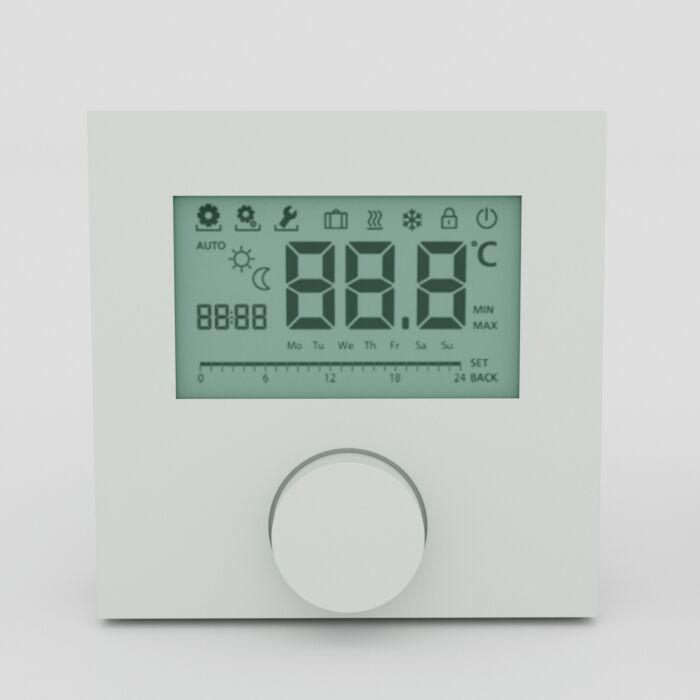

Möhlenhoff Alpha controller direct 230V St., RD 20203-11N4 230 V Triac
The Alpha controller direct display is a high-quality Raumtemperaturregler for recording and controlling the desired room temperature.
Simple individual room control is possible even with directly connected actuators. In conjunction with the Alpha Basis direct connection unit, a perfectly coordinated overall system for surface temperature control can be created.
The desired room temperature is set and the device is operated using the rotary knob with a turn-press mechanism and soft-lock mechanism. The symbols are always clearly displayed on the clear and language-neutral display of the high-quality screen.
The Alpha controller direct display receives its supply voltage via the Alpha base direct or a separate voltage source.
• Flat design and small dimensions
• Standalone or system-based control
• Large, clear LC display with additional backlighting
• Equipment for heating systems
• Different operating modes
• Fixed setback difference
• Reduction input for time-controlled reduction of the room temperature, for example via an external system clock
• Correction of actual temperature detection
• Target temperature limit
• Valve protection function
• Frost protection function
• additionally available high-quality design screen made of scratch-resistant plastic
• Suitable for Stellantriebe with NC control (NC: normally closed)
• Simple, intuitive Plumbing and operation
• High functional reliability
• Maintenance-free
Operating voltage: 230 V ±10 % 50 Hz
Power supply: via base/external power supply
Protection class: IP 20
Protection class: II
Switching capacity: 2 A resistive load, 200 VA inductive
Setting range target temperature: 10 °C to 28 °C
Resolution target temperature setting: 1930 ,25 °C
Setback temperature: 4 °C
max. connectable Stellantriebe : 10 (max, 3 W/actuator)
Connection terminals: 5 screw terminals – 1930 ,22 mm² to 2000 ,5 mm²
Material: ABS
Color: Reinweiß
Dimensions (W x H x D): 86 x 86 x 31 mm
• OEM Alpha controller direct display in individual packaging
• Instructions in 12 languages
